- Place of Origin:CN;JIA
- Usage:Motorcycle / Scooter
- Sealed Type:Sealed
- Maintenance Type:Free
- Certification:UL
- Certification:ce
- Brand Name:XUPAI
- Model Number:4-EVF-150
- Weight:36.00 Kg

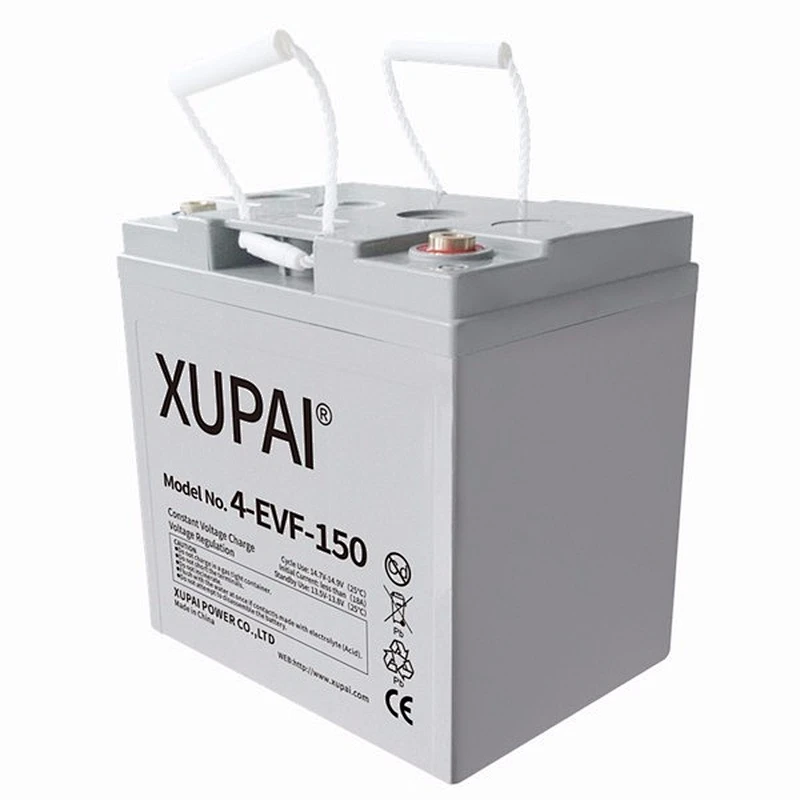

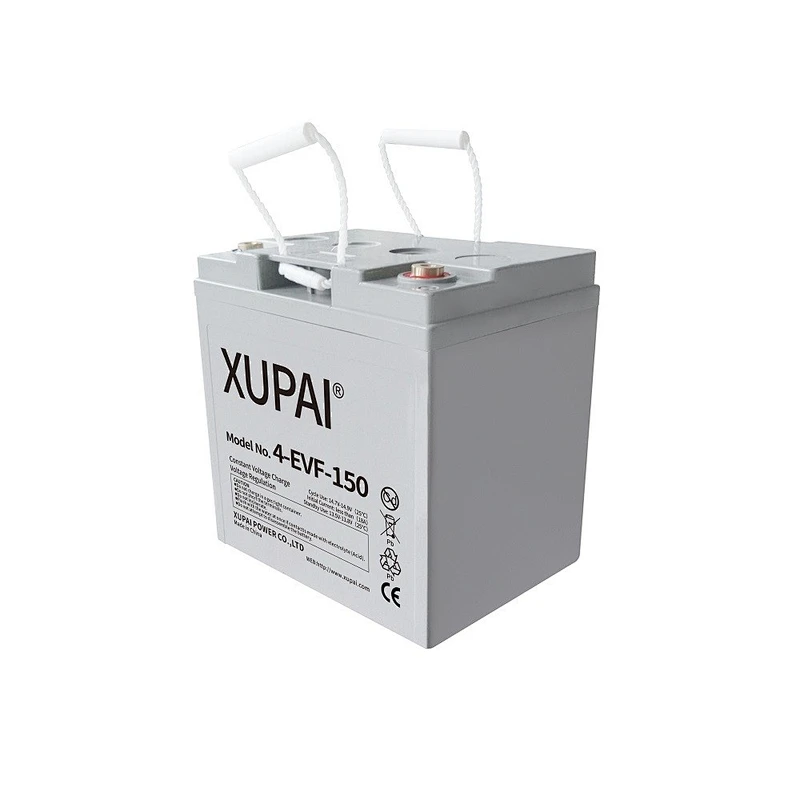

Xupai Deep cycle Battery 4-EVF-150 Batteries for Golf Cart
SLA
Size 260(L) x 180(D) x 280(H)mm
Charge Current 0.2512-0.312(A) for 10-14 hours
Discharge Current 20 hr rate 1.00(A)
Battery Casing:ABS
Capacity
20hr rate (1.00A to 10.5V) 175Ah
10hr rate (2.00A to 10.5V) 165Ah
5 hr rate (4.00A to 10.5V) 160Ah
3 hr rate (6.50A to 10.5V) 150Ah
2 hr rate (10.0A to 10.5V) 135Ah
Internal Resistance
Fully Charged Battery(20°C,68°F): below 15m Ohm
Max Discharge Current (5 sec):40A
Charging Methods
Floating Use :13.5-13.8V, Compensation co-efficient-3mv/cell/°C
Cycling Use:14.4-15V,Compensation co-efficient-5mv/cell/°C
Constant Voltage Charge:14.8V
Max charge current :0.3C(A)
Self Discharge Rate(20°C,68°F): 3%/28 Days
Operating Temperature Range:
Discharge:-35 to 50°C(-31to 122°F)
Charge:-15 to 40°C(5 to 104°F)
Storage:-15 to 40°C(5 to 104°F)
RECHARGEABLE
Battery quantity: 1pc (4pcs/pack)
Charging Time: 10-12hr
Recharging Voltage: 14.8V
Battery Usage Rechargeable
Battery Chemical Composition: Sealed Lead Acid (SLA)
DC VOLTAGE RATING
DC Voltage: 12V
PRODUCT DIMENSIONS (Tolorance.1mm)
Item Length 260mm
Item Height 180mm
Item Depth 280mm
PACKAGED DIMENSIONS
Packaged Volume 0.012CBM/CTN
Packaged Weight 28.2kgs(N.W.: 27.6KGS)
Packaged Length 32.2cm
Packaged Width 19.1cm
Packaged Height 19.5cm
20"Container:2300pcs
Warranty: 12 Months
Lead Acid Battery china manufacturer for E-scooter, electric scooter , e-bicycle with CE/ISO Certificate Made in China
What's kind of Quality of our 4-EVF-150 8V Battery?
*Deep Cycle Battery
*OEM Available
*Eco-friendly
*MSDS for Shipment
What's our4-EVF-150 8VBattery information in Details?
Size:L180*W76*H170MM
Capacity:12V 20AH
Type:Lead Acid Battery
Discharge Time:2 (HRS)
Terminal:Screw M5
Weight:6.90KGS
What's package for our4-EVF-150 8Vbattery?
4PCS/CTN CTN Size:32.2*19.1*19.5CM
GW/NW:28.4/28.2KGS
20'':400PCS
What's the cycle life for our4-EVF-150 battery?
360 Times @100%DOD
480 Times @80%DOD
600 Times @50%DOD
1310 Times @30%DOD
1600 Times @20%DOD
| Model | 4-EVF-150 | Nominal Voltage | 8V | Rated Capacity | 150AH |
Type
| Lead Acid Battery | Dimension | 180*76*170MM | Weight | 36.00 KGS |
| Certificate | ISO9001, ISO14001, CE, UL | MOQ | 20 pcs/item | Package Detail | Paper Carton with Wooden Pallet |
Payment Terms
| T/T or L/C | Main Market | India,Turkey,etc. | Delivery Time | 20 Days |
Packaging & Delivery:
Packaging Details:Paper Box or White Box(with Wooden Pallet)
Delivery Details:All goods are in warehouse and can be deliveried within 25 Days
A:What's your battery Charge Volte?
Re: Range from 14.70 to 14.90 Voltage/pc ,recommended 14.80 Voltage
B:What's your gurantee for Battery
Re:Email to us
C:What's your battery life time
Re:Normally depending your useage situation as the 100% DOD over 360 Times.
D:Do you accepted L/C?
Re:Yes.
