- Place of Origin:CN;JIA
- Usage:Motorcycle / Scooter
- Voltage:12V
- Sealed Type:Sealed
- Maintenance Type:Free
- Brand Name:XUPAI
- Model Number:6-DZM-20
- Size:180*76*170mm
- Weight:7.0kg
- Nominal Capacity:20ah
12V12AH power 6-DZM-12 battery for e-bikes two wheels vehicle
Specification:
XUPAI BATTERY | |
Model | 6-DZM-12(12V 12AH) |
Type | Lead acid battery |
2 Hour rate discharge | 12AH |
5 Hour rate discharge | 14.5AH |
Dimension | 151*100*99mm |
Weight | 4.2kg |
Maintenance Type | Free |
Leading Feature | 15% more working time |
8% longer service life | |
Cadmium-free green | |
3rd largest supplier in China | |
Self Discharge Range(20°C) | 3% per 28days |
Internal Resistance | Fully charged Battery≤15mΩ |
Recycle times | 650times |
Discharge Time | 2 hours |
Case | ABS |
Customizer | Available |
Stock | Yes we have large quantity in stock, welcome to have an order |
Certificate | ISO, CE |
MOQ | 200pcs |
Package Detail | Paper Carton with Wooden Pallet |
Payment | T/T;L/C |
Advatages than others:
1):Maintenance-Free Operation
Absorbent Glass Mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance. During the expected float service life of MCA batteries, no need to check the specific gravity of the electrolyte or add water.
2 ): Good Discharging Ability
Tight assembly technology ensures an excellent high-rate discharge performance.
3 ): Long Service Life
A unique corrosion-resistant grid alloy ensures MCA batteries have long service life.
4 ): Low Self Discharge
Using high purity raw materials ensures MCA batteries have less self-discharge.
5 ): Environmental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate, which can prevent the acid fog from separating out.
6 ): Safe & Reliable
Efficient venting system automatically release excess gas when the pressure rises above the normal level & reseals the valves when it returns to the normal rate, which can protect the battery from bursting.

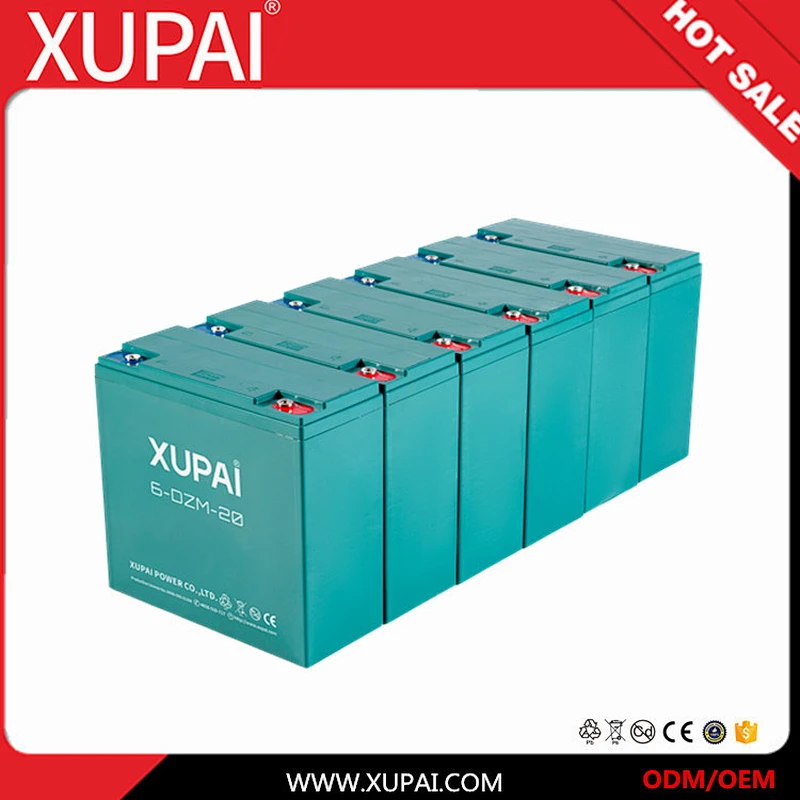

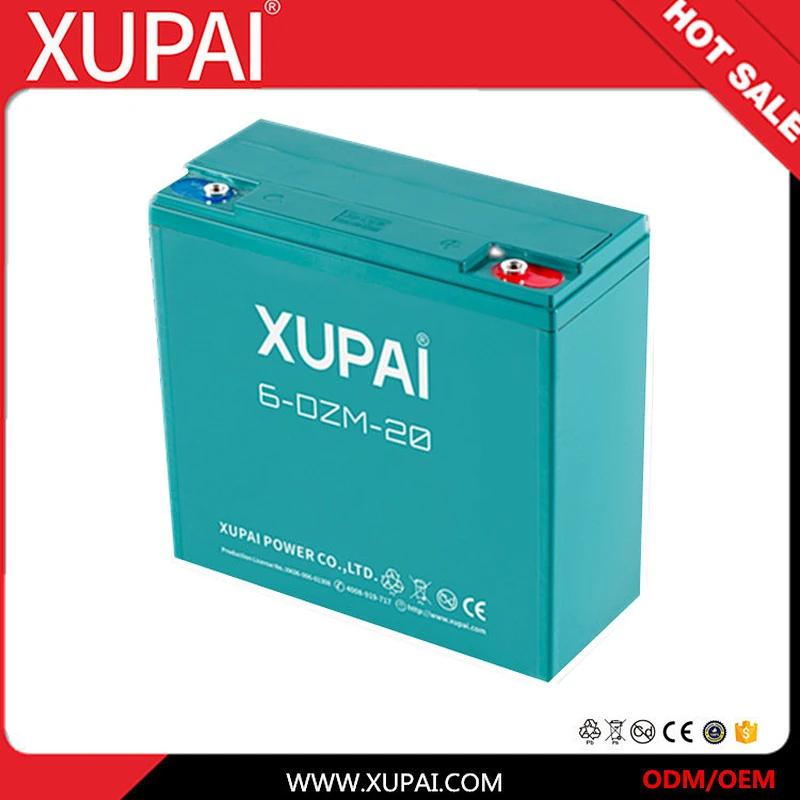

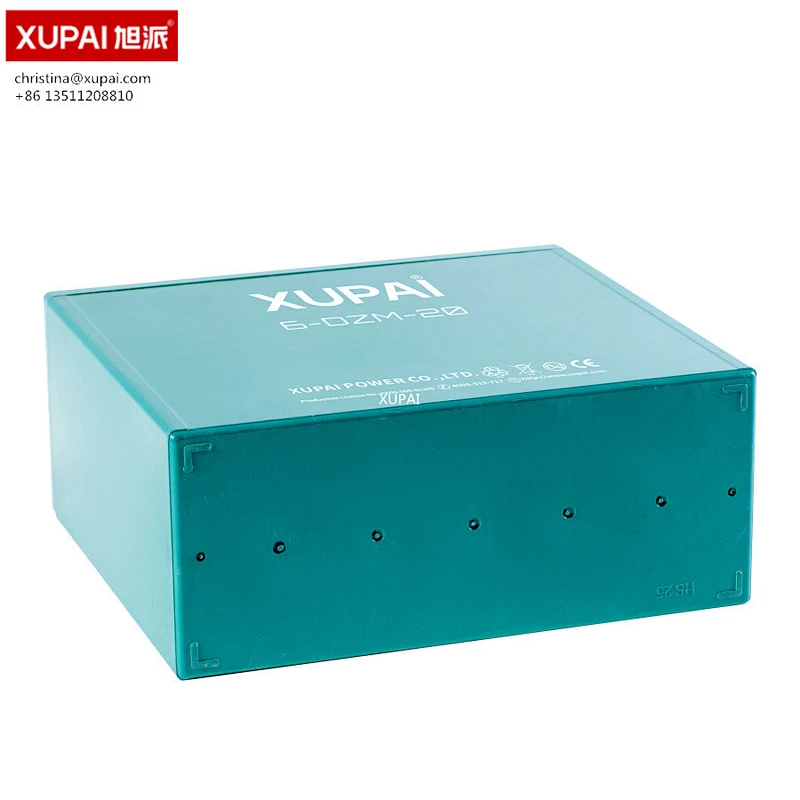

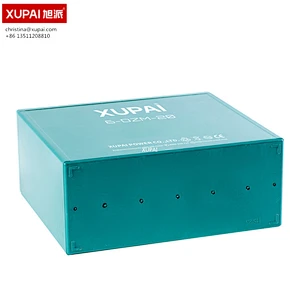

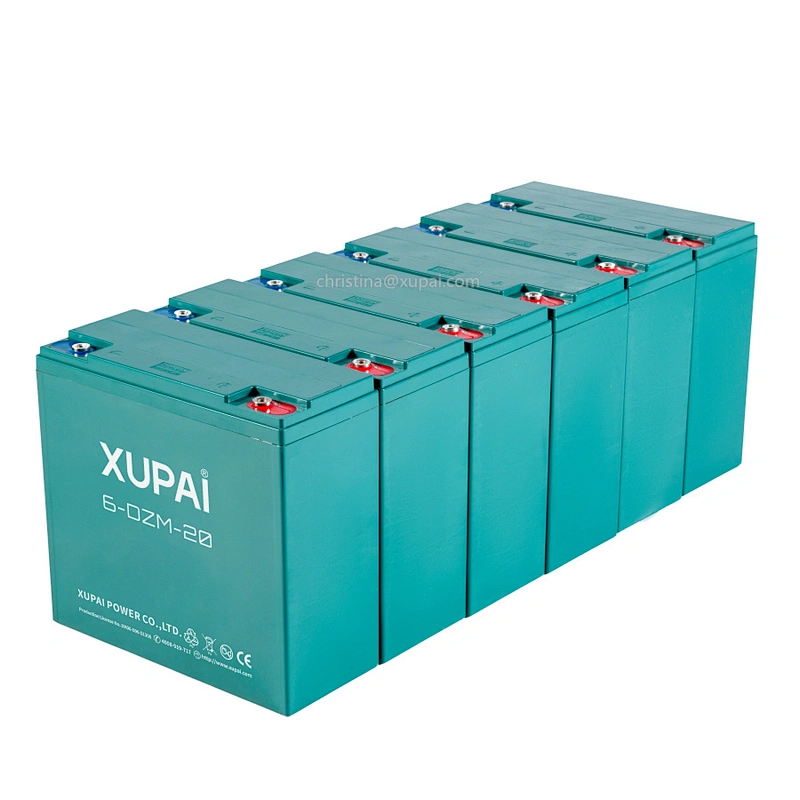

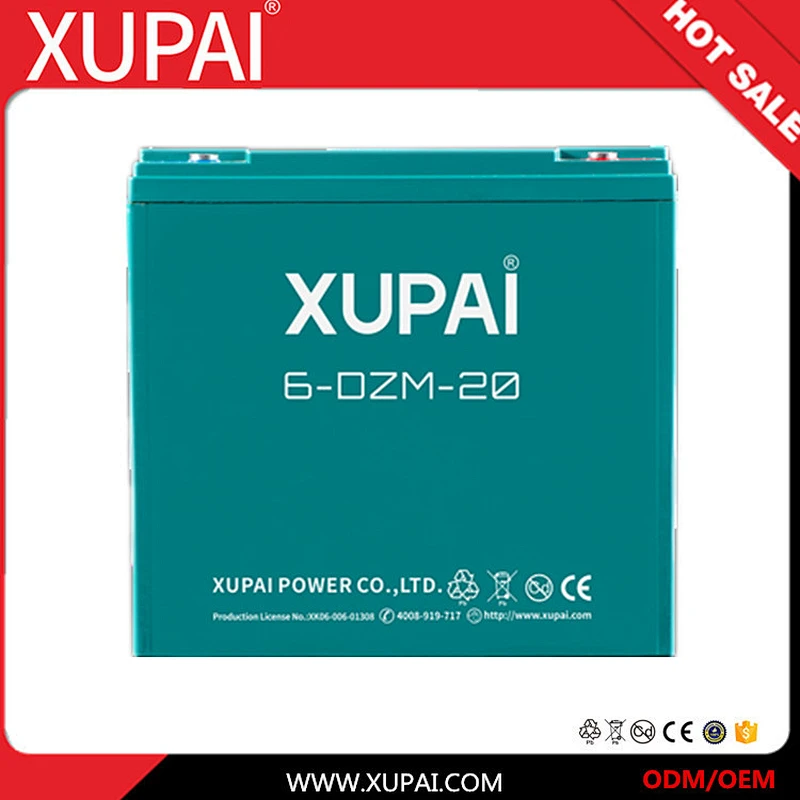

Photos for Details:
Other Battery Series(Click photos for details):
1.DZM Series--------------For Electrical two wheels or three wheels Vehicels
( E-bike/Electric tricycle/Quad bikes/Electric scooters/Mobility scooters etc/Ride-on toys/powered wheelchairs Semi-traction lawn mowers)
2.EVF Series-----------------For Four wheels Low Speed Vehicles
( Electric cars/Golf cars/Tourist mini bus/car/Cargo van/Ambulance Vehicles/Patrol Car...)
3.CNF(J) and GFM Series---------------------For Power storage and power back up
(Portable television and video equipment/Lifting equipment/solar panels/wind power/UPS/Mobile Base Station
4.QW Series--------------------------------------------For Automotive starting-stop
(Automitive starting-stop battery)
6.Water low maintanence battery
| DZM/FM/EVF SERIES MODEL LIST | |||||||
| MODEL | VOLTAGE (V) | Discharge Time (hrs) | Rated Capacity (Ah) | BATTERY SIZE(mm±2mm) | Weight | ||
| Length | Width | Height | (Kg±0.5) | ||||
| 6-DZM-12 | 12 | 2 | 12 | 151 | 100 | 99 | 4.3 |
| 6-DZM-20 | 12 | 2 | 20 | 180 | 76 | 170 | 6.9 |
| 6-DZM-24 | 12 | 2 | 24 | 185 | 105 | 130 | 7.3 |
| 6-DZM-28 | 12 | 2 | 28 | 175 | 166 | 125 | 9.8 |
| 6-FM-35 | 12 | 10 | 35 | 266 | 76 | 170 | 10.2 |
| 6-FM-35 | 12 | 10 | 35 | 223 | 93 | 175 | 10.2 |
| 6-FM-42 | 12 | 10 | 42 | 223 | 120 | 175 | 12.5 |
| 6-FM-38 | 12 | 10 | 38 | 223 | 108 | 175 | 11.8 |
| 6-FM-50 | 12 | 10 | 50 | 223 | 120 | 175 | 13.4 |
| 8-DZM-14 | 16 | 2 | 14 | 201 | 112 | 102 | 7 |
| 8-DZM-20 | 16 | 2 | 20 | 250 | 100 | 130 | 9.8 |
| 8-DZM-25 | 16 | 2 | 25 | 250 | 115 | 130 | 11.5 |
| 8-DZM-28 | 16 | 2 | 28 | 230 | 166 | 125 | 13 |
| 3-EVF-180 | 6 | 3 | 180 | 243 | 188 | 275 | 35 |
| 3-EVF-200 | 6 | 3 | 200 | 260 | 180 | 280 | 36 |
| 4-EVF-150 | 8 | 3 | 150 | 260 | 180 | 280 | 36 |
| 6-EVF-65 | 12 | 3 | 65 | 325 | 175 | 170 | 23.5 |
| 6-EVF-100 | 12 | 3 | 100 | 330 | 175 | 215 | 33 |
| 6-EVF-120 | 12 | 3 | 120 | 405 | 170 | 240 | 41.5 |
| 6-EVF-120 | 12 | 3 | 120 | 340 | 170 | 255 | 39.5 |
| 6-EVF-150 | 12 | 3 | 150 | 483 | 170 | 240 | 52.5 |
XUPAI Battery-one of the top three battery manufacturer in China. With more than 20 years' experience in battery production, now we have got more than 20 patents in prodution technical and covers an area of 1070000 square meters and more than 6000 employees.
Certificates:
Packing:Carton+wooden Case+Pallet(see photos for details),customized packing acceptable
Shipping:Depends on request
