- Place of Origin:CN;ZHE
- Model Number:6-DZM-20
- Brand Name:XUPAI
- Nominal Capacity:20AH
- Size:180*76*170MM
- Type:Motorcycle / Scooter
- Nominal Voltage:12v
Specification:
XUPAI BATTERY | |
Model | 6-DZM-20(12V 20AH) |
Type | Lead acid battery |
Nominal Voltage | 12V |
Rated Capacity | 20AH |
Dimension | 180*76*170mm |
Weight | 6.8kg |
Maintenance Type | Free |
Leading Feature | 15% more working time |
8% longer service life | |
Cadmium-free green | |
3rd largest supplier in China | |
Self Discharge Range(20°C) | 3% per 28days |
Internal Resistance | Fully charged Battery≤15mΩ |
Recycle times | 650times |
Discharge Time | 2 hours |
Case | ABS |
Customizer | Available |
Stock | Yes we have large quantity in stock, welcome to have an order |
Certificate | ISO, CE |
MOQ | 200pcs |
Package Detail | Paper Carton with Wooden Pallet |
Payment | T/T;L/C |
Advatages than others:
1):Maintenance-Free Operation
Absorbent Glass Mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance. During the expected float service life of MCA batteries, no need to check the specific gravity of the electrolyte or add water.
2 ): Good Discharging Ability
Tight assembly technology ensures an excellent high-rate discharge performance.
360 Times @100%DOD 480 Times @80%DOD 600 Times @50%DOD | 1310 Times @30%DOD 1600 Times @20%DOD |
3 ): Long Service Life
A unique corrosion-resistant grid alloy ensures MCA batteries have long service life.
4 ): Low Self Discharge
Using high purity raw materials ensures MCA batteries have less self-discharge.
5 ): Environmental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate, which can prevent the acid fog from separating out.
6 ): Safe & Reliable
Efficient venting system automatically release excess gas when the pressure rises above the normal level & reseals the valves when it returns to the normal rate, which can protect the battery from bursting.

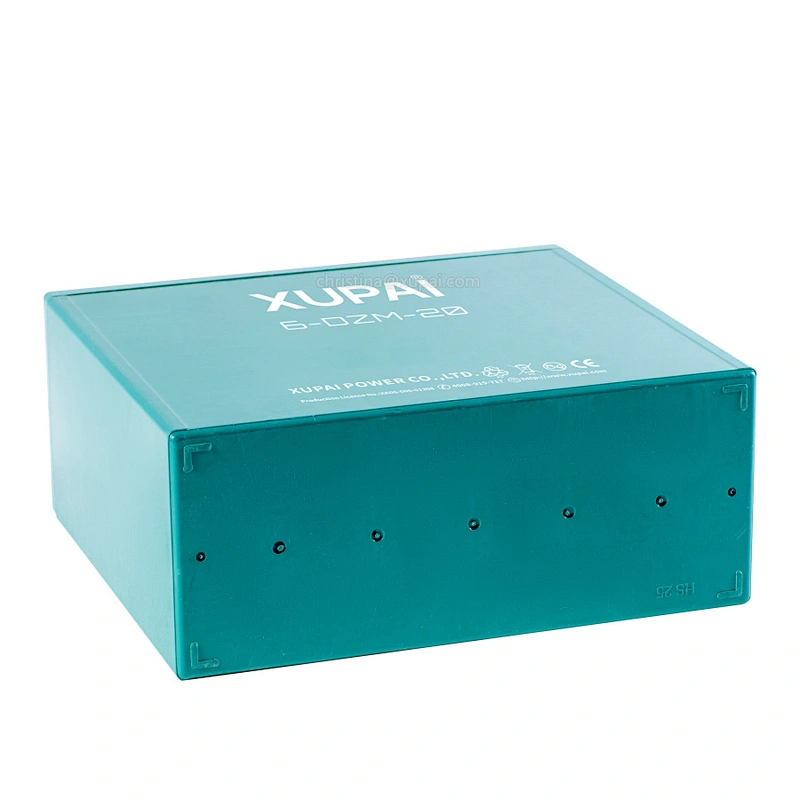

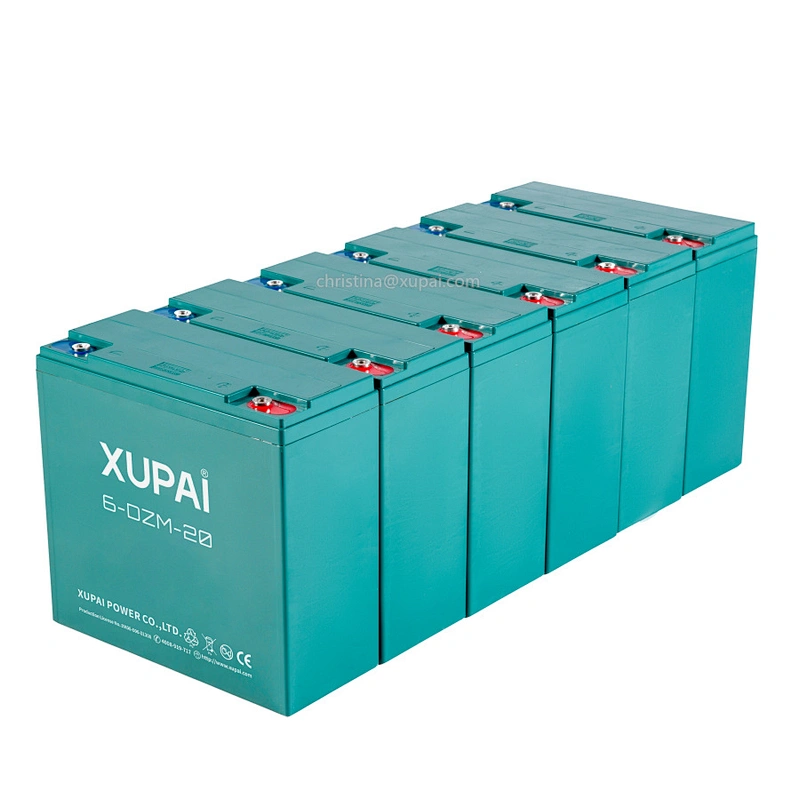

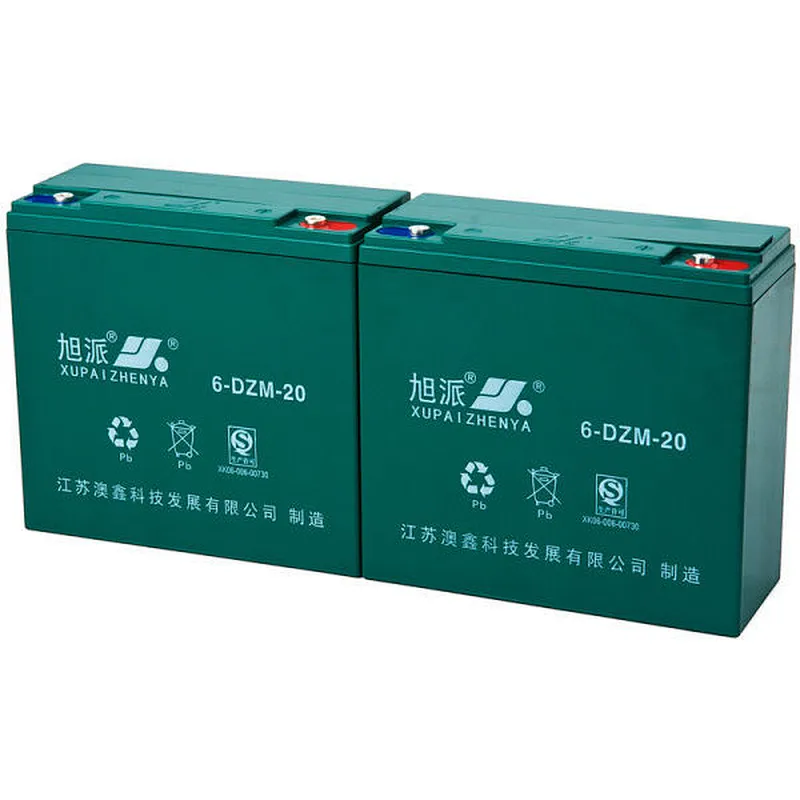

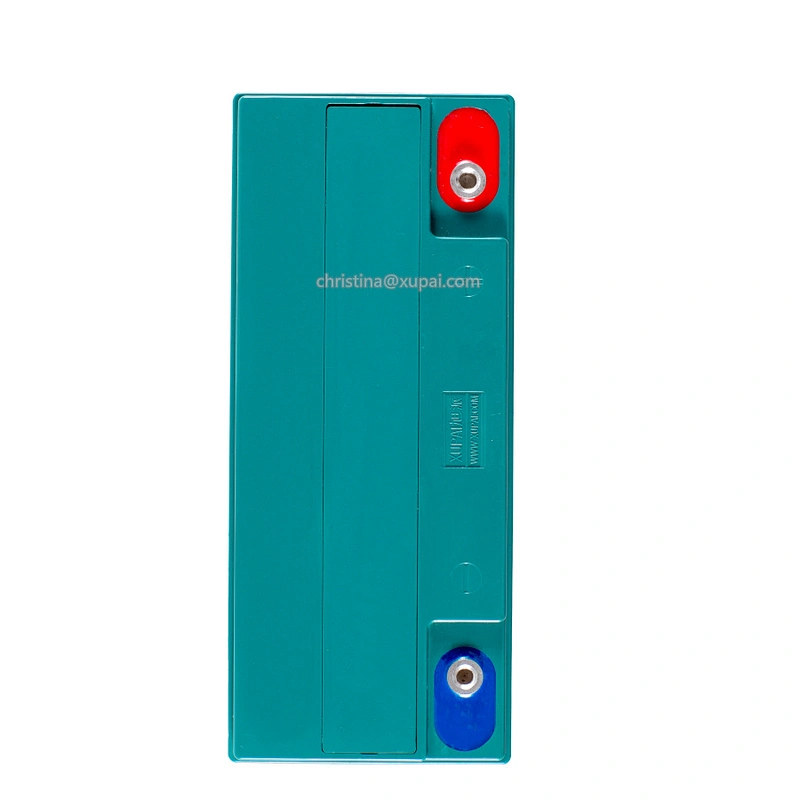

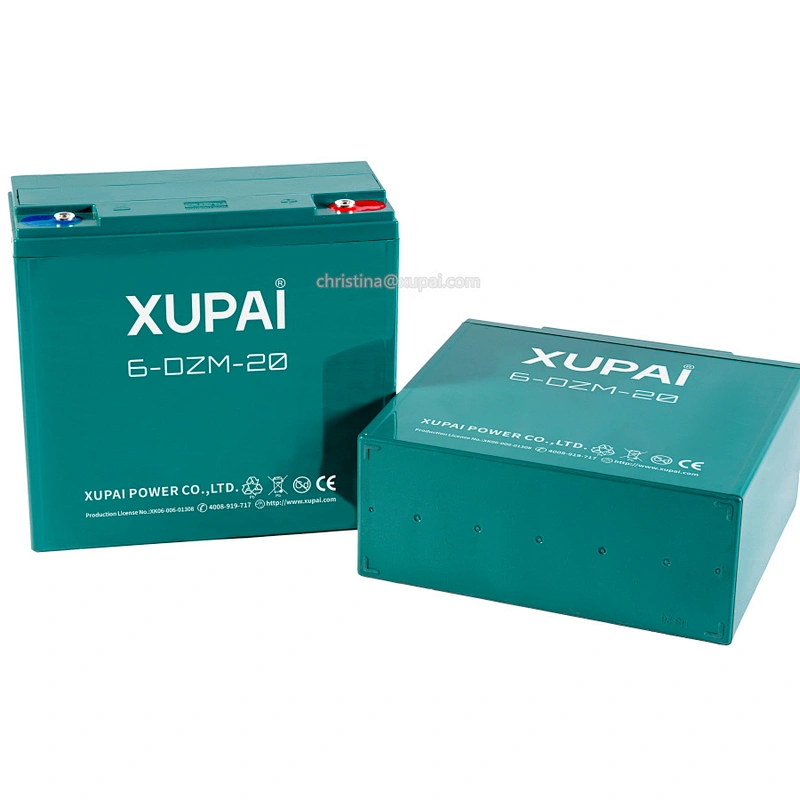

Photos for Details:
Product Application:
1: E-bike
2: Electric tricycle
3: Quad bikes
4: Electric scooters
5: Electric cars
6: Mobility scooters etc
7: Golf cars
8: Ride-on toys
9: Electric scooters
10: Battery-powered wheelchairs
11: Portable television and video equipment
12: Lifting equipment
13: Semi-traction lawn mowers
14: Besides our lead acid battery batteries pack used in store the green energy like solar power,wind power and UPS
| DZM/FM/EVF SERIES MODEL LIST | |||||||
| MODEL | VOLTAGE (V) | Discharge Time (hrs) | Rated Capacity (Ah) | BATTERY SIZE(mm±2mm) | Weight | ||
| Length | Width | Height | (Kg±0.5) | ||||
| 6-DZM-12 | 12 | 2 | 12 | 151 | 100 | 99 | 4.3 |
| 6-DZM-20 | 12 | 2 | 20 | 180 | 76 | 170 | 6.9 |
| 6-DZM-24 | 12 | 2 | 24 | 185 | 105 | 130 | 7.3 |
| 6-DZM-28 | 12 | 2 | 28 | 175 | 166 | 125 | 9.8 |
| 6-FM-35 | 12 | 10 | 35 | 266 | 76 | 170 | 10.2 |
| 6-FM-35 | 12 | 10 | 35 | 223 | 93 | 175 | 10.2 |
| 6-FM-42 | 12 | 10 | 42 | 223 | 120 | 175 | 12.5 |
| 6-FM-38 | 12 | 10 | 38 | 223 | 108 | 175 | 11.8 |
| 6-FM-50 | 12 | 10 | 50 | 223 | 120 | 175 | 13.4 |
| 8-DZM-14 | 16 | 2 | 14 | 201 | 112 | 102 | 7 |
| 8-DZM-20 | 16 | 2 | 20 | 250 | 100 | 130 | 9.8 |
| 8-DZM-25 | 16 | 2 | 25 | 250 | 115 | 130 | 11.5 |
| 8-DZM-28 | 16 | 2 | 28 | 230 | 166 | 125 | 13 |
| 3-EVF-180 | 6 | 3 | 180 | 243 | 188 | 275 | 35 |
| 3-EVF-200 | 6 | 3 | 200 | 260 | 180 | 280 | 36 |
| 4-EVF-150 | 8 | 3 | 150 | 260 | 180 | 280 | 36 |
| 6-EVF-65 | 12 | 3 | 65 | 325 | 175 | 170 | 23.5 |
| 6-EVF-100 | 12 | 3 | 100 | 330 | 175 | 215 | 33 |
| 6-EVF-120 | 12 | 3 | 120 | 405 | 170 | 240 | 41.5 |
| 6-EVF-120 | 12 | 3 | 120 | 340 | 170 | 255 | 39.5 |
| 6-EVF-150 | 12 | 3 | 150 | 483 | 170 | 240 | 52.5 |
Product Technical:
All Product Series:
There are 4 sub-brands under XUPAI:
Brand XUPAI
Brand JINGRICHAO
Brand SHENGMING
Brand BOLANG
With 4 productions sites below,now we have got a wide range of distributor net both at home and abroad:
Workshops:
Certificates:
Packing:Carton+wooden Case+Pallet(see photos for details),customized packing acceptable
Shipping:Depends on request
