- Place of Origin:CN
- Usage:Motorcycle / Scooter
- Sealed Type:Sealed
- Maintenance Type:Free
- Certification:UL
- Certification:ce
- Brand Name:Xupai
- Model Number:6-DZM-20
- Weight:6.6 Kg

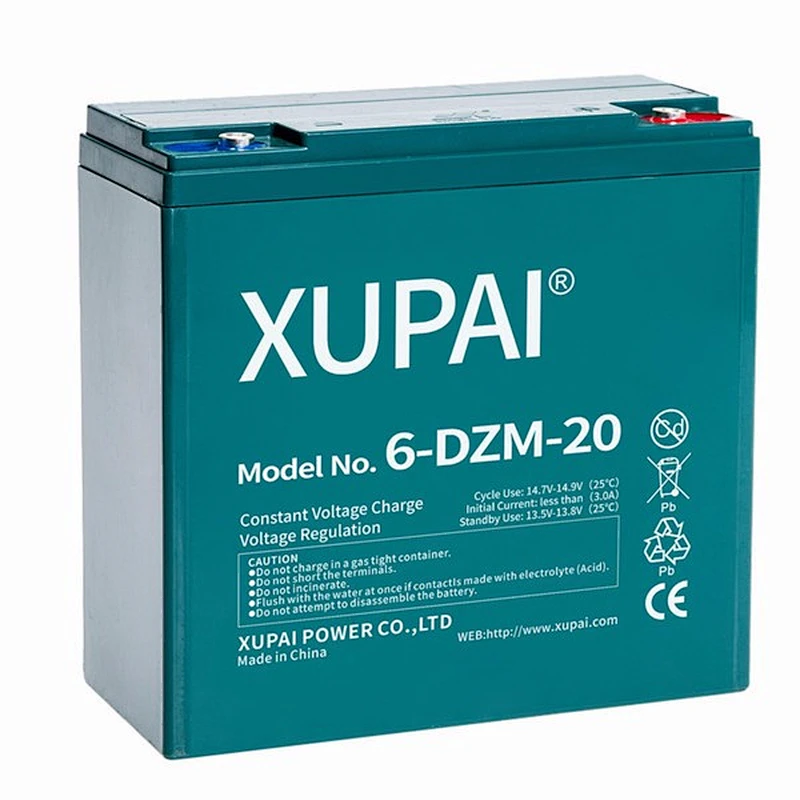

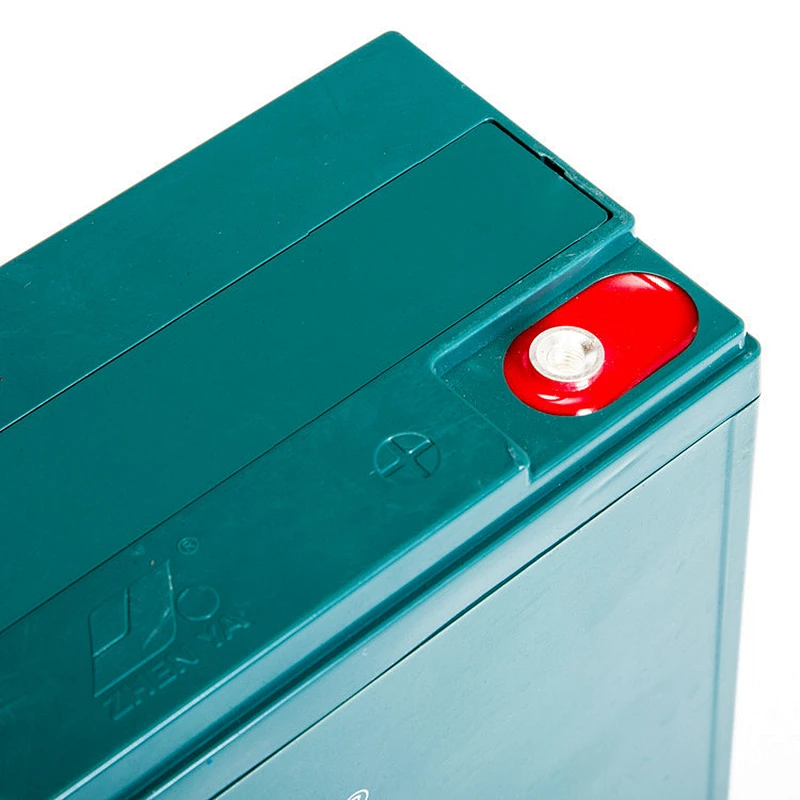

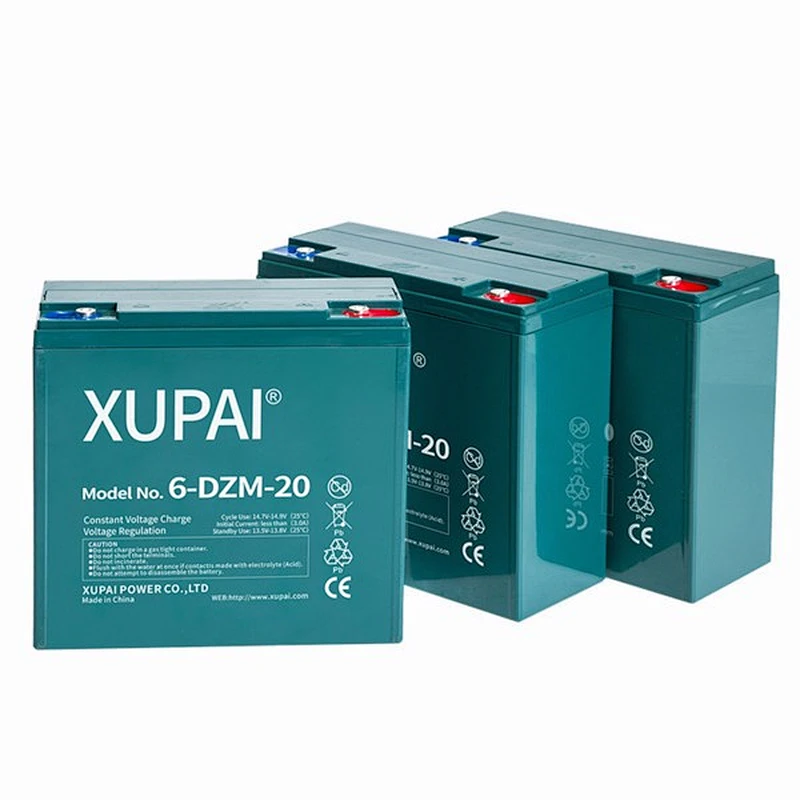

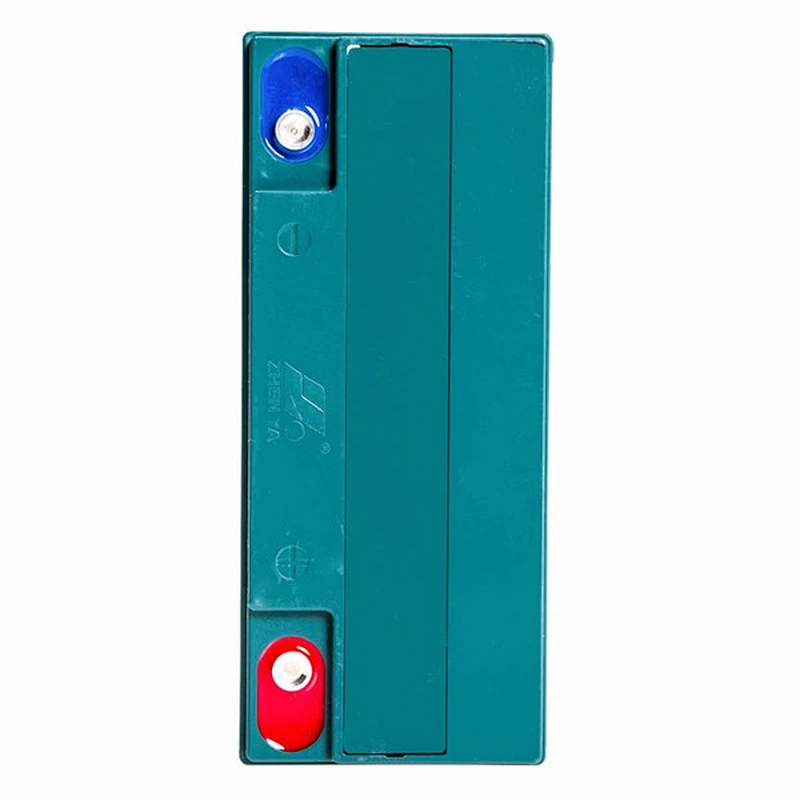

Replacement rechargeable battery 6 dzm 20 for ebike



Capacity
20hr rate (1.00A to 10.5V) 27Ah
10hr rate (2.00A to 10.5V) 25Ah
5 hr rate (4.00A to 10.5V) 24Ah
3 hr rate (6.50A to 10.5V) 22Ah
2 hr rate (10.0A to 10.5V) 20Ah
Internal Resistance
Fully Charged Battery(20°C,68°F): below 15m Ohm
Max Discharge Current (5 sec):40A
Charging Methods
Floating Use :13.5-13.8V, Compensation co-efficient-3mv/cell/°C
Cycling Use:14.4-15V,Compensation co-efficient-5mv/cell/°C
Constant Voltage Charge:14.8V
Max charge current :0.3C(A)
Self Discharge Rate(20°C,68°F): 3%/28 Days
Operating Temperature Range:
Discharge:-35 to 50°C(-31to 122°F)
Charge:-15 to 40°C(5 to 104°F)
Storage:-15 to 40°C(5 to 104°F)
Battery Usage Rechargeable
Battery Chemical Composition: Sealed Lead Acid (SLA)
DC VOLTAGE RATING
DC Voltage: 12V
PRODUCT DIMENSIONS (Tolorance.1mm)
Item Length 180mm
Item Height 170mm
Item Depth 76mm
PACKAGED DIMENSIONS
Packaged Volume 0.012CBM/CTN
Packaged Weight 28.2kgs(N.W.: 27.6KGS)
Packaged Length 32.2cm
Packaged Width 19.1cm
Packaged Height 19.5cm
20"Container:2300pcs
What's kind of Quality of our 6-DZM-20 12V Battery?
*Deep Cycle Battery
*OEM Available
*Eco-friendly
*MSDS for Shipment
What's package for our 6-DZM-20 12V battery?
4PCS/CTN CTN Size:32.2*19.1*19.5CM
GW/NW:28.4/28.2KGS
20'':2384PCS
What's product description for our 6-DZM-20 12V Battery?
| Model | 6-DZM-20 | Nominal Voltage | 12V | Rated Capacity | 20AH |
Type | Lead Acid Battery | Dimension | 180*76*170MM | Weight | 6.90 KGS |
| Certificate | ISO9001, ISO14001, CE, UL | MOQ | 0 pcs/item | Package Detail | Paper Carton with Wooden Pallet |
Payment Terms | T/T or L/C | Main Market | India,Turkey,etc. | Delivery Time | 1 Days |
Packaging & Delivery:
Packaging Details:Paper Box or White Box(with Wooden Pallet)
Delivery Details:All goods are in warehouse and can be deliveried within 7 Days
Battery OEM Ability:
Your Logo on Battery and Your Package Based on order of 500PCS Each Item
A:What's your battery Charge Volte?
Re: Range from 14.70 to 14.90 Voltage/pc ,recommended 14.80 Voltage
B:What's your gurantee for Battery
Re:Email to us
C:What's your battery life time
Re:Normally depending your useage situation as the 100% DOD over 360 Times.
D:Do you accepted L/C?
Re:Yes.
