- Application:Electric Bicycles/Scooters
- Place of Origin:CN;JIA
- Battery Size:180*76*170
- Brand Name:XUPAI
- Certification:UL
- Model Number:6-DZM-20
- Weight:6.6kg

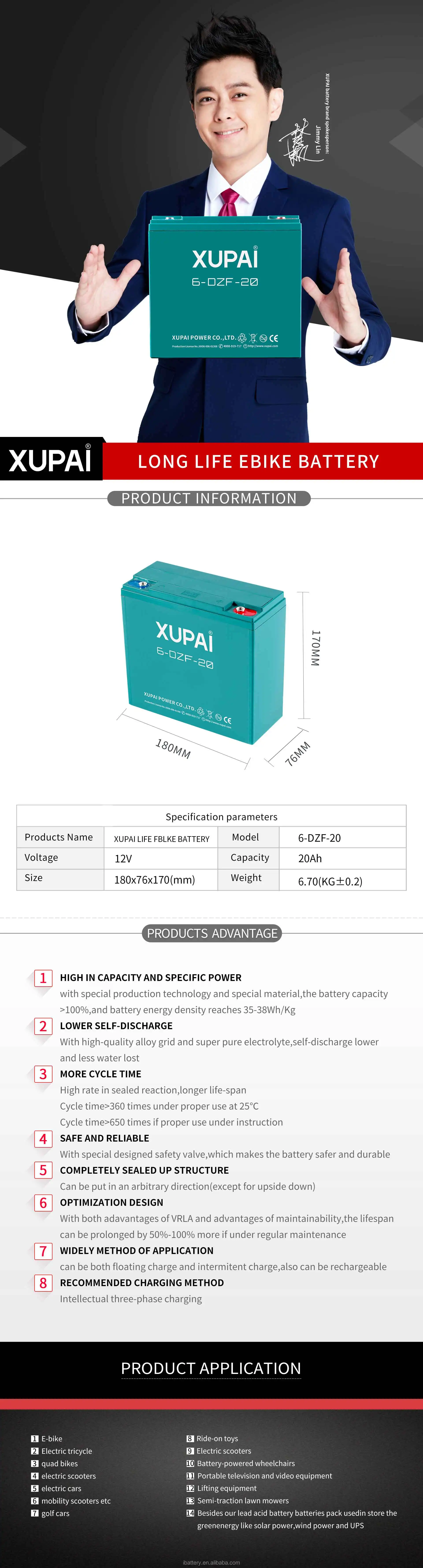

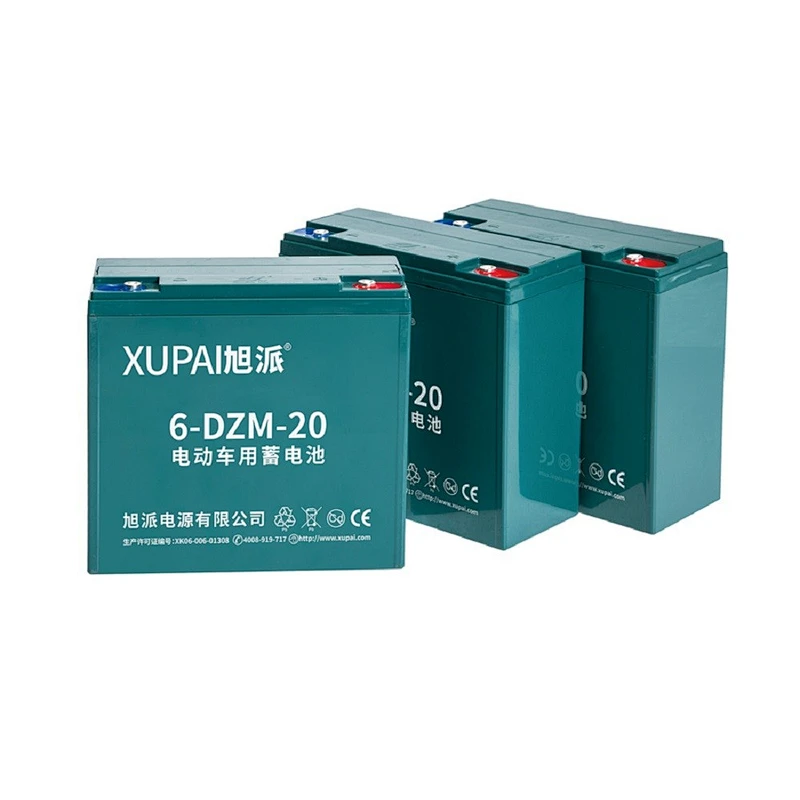

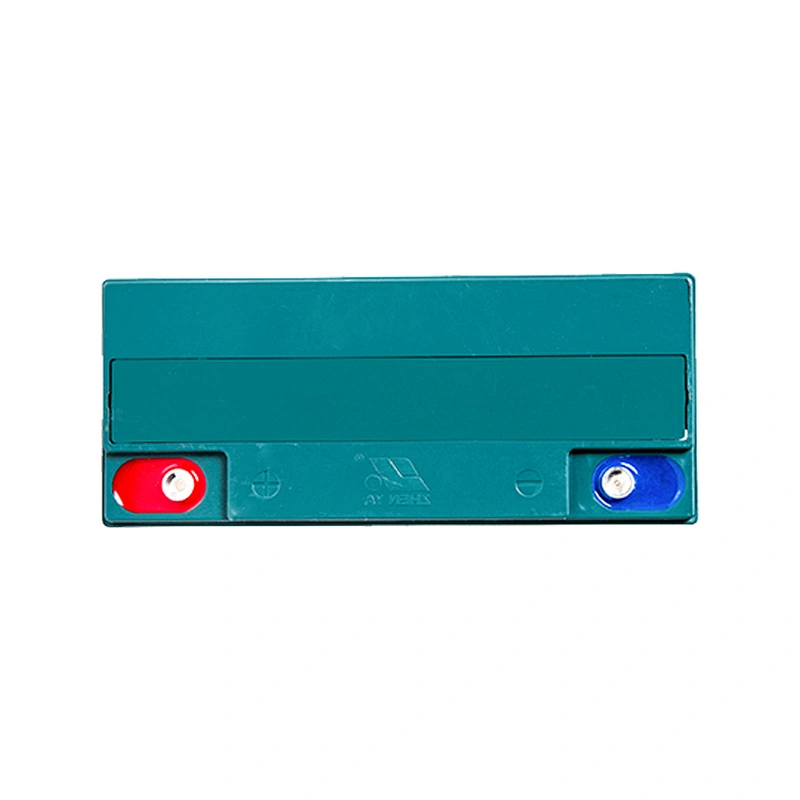

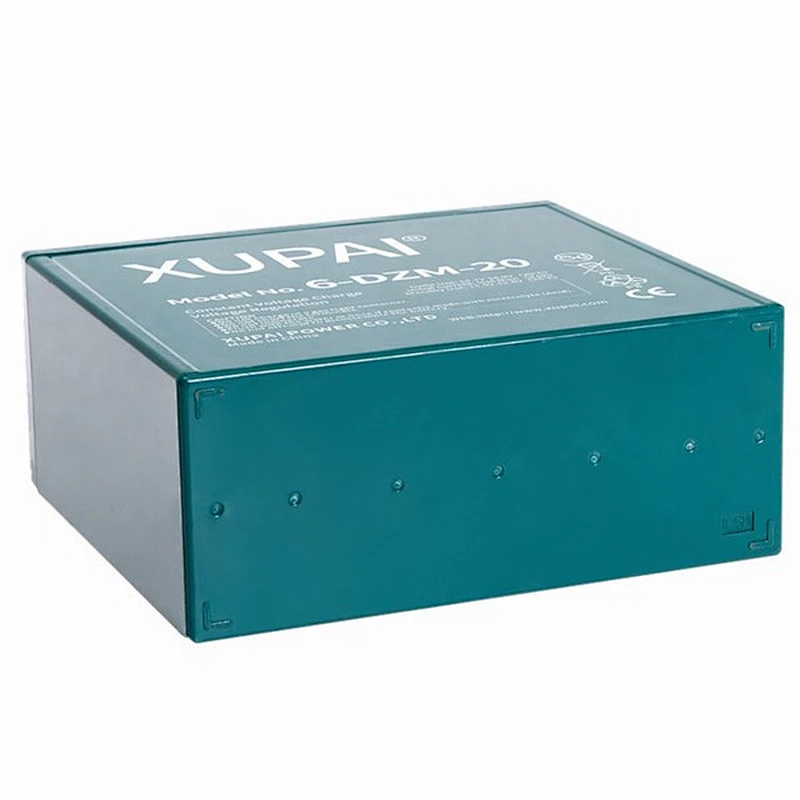

Maintenance free 12V 20Ah Electric Bike Battery
*Deep Cycle Battery
*OEM Available
*Eco-friendly
* MSDS for Shipment
Deep Cycle Battery Type and 12V Voltage 12V12AH Escooters Battery
Details:
Size:L180*W76*H170MM
Capacity:12V 20AH
Type:Lead Acid Battery
Discharge Time:2 (HRS)
Terminal:Screw M5
Package
4PCS/32.2*19.1*19.5CM
GW/NW:28.4/28.2KGS
20'':2384PCS
Cycle Life:
360 Times @100%DOD
480 Times @80%DOD
600 Times @50%DOD
1310 Times @30%DOD
1600 Times @20%DOD
| Model | 6-DZM-20 | Nominal Voltage | 12V | Rated Capacity | 20AH |
Type
| Lead Acid Battery | Dimension | 180*76*170MM | Weight | 6.90 KGS |
| Certificate | ISO9001, ISO14001, CE, UL | MOQ | 0 pcs/item | Package Detail | Paper Carton with Wooden Pallet |
Payment Terms
| T/T or L/C | Main Market | India,Turkey,etc. | Delivery Time | 1 Days |
Packaging & Delivery:
Packaging Details:Paper Box or White Box(with Wooden Pallet)
Delivery Details:All goods are in warehouse and can be deliveried within 1 Days
Product Specification
Lead Acid | Nominal | Discharge | Rated | External Dimensions/mm |
| |||
| Battery | Voltage | Time | Capacity | Length | Width | Height | Total Height | Weight |
Model | (V) | (HRS) | (AH) | (MM+-2) | (KGS) | |||
| 6-DZM-10 | 12 | 2 | 10 | 151 | 100 | 95 | 95 | 4.2 |
6-DZM-12 | 12 | 2 | 12 | 151 | 100 | 97 | 97 | 4.3 |
| 6-DZM-17 | 12 | 2 | 17 | 180 | 76 | 152 | 152 | 6.3 |
| 6-DZM-20 | 12 | 2 | 20 | 180 | 76 | 170 | 170 | 7.0 |
| 6-DZM-24 | 12 | 2 | 24 | 185 | 105 | 130 | 130 | 7.3 |
| 6-DZM-28 | 12 | 2 | 28 | 175 | 166 | 125 | 125 | 9.8 |
6-DZM-32 | 12 | 2 | 32 | 175 | 166 | 125 | 125- | 10.5 |
| 6-DZM-48 | 12 | 2 | 48 | 196 | 164 | 175 | 175 | 16.0 |
6-FM-35 | 12 | 10 | 35 | 267 | 77 | 170 | 170 | 10.2 |
| 6-FM-42 | 12 | 10 | 42 | 220 | 120 | 175 | 175 | 12.5 |
6-FM-50 | 12 | 10 | 50 | 224 | 120 | 175 | 177 | 13.35 |
8-DZM-14 | 16 | 2 | 14 | 201 | 112 | 102 | 102 | 7.0 |
| 8-DZM-20 | 16 | 2 | 20 | 250 | 100 | 130 | 130 | 9.6 |
8-DZM-28 | 16 | 2 | 28 | 250 | 166 | 125 | 125 | 12.7 |
| Value of goods | Terms of Payment |
| Less 5,000 dollars | 100%T/T advance |
| 5,000-20,000 dollars | 50% T/T advance |
| More 20,000 dollars | T/T or L/C at sight |
