6 dzm12 lead acid battery for scooter 48V 12Ah

• Place of Origin:CN;JIA
• Usage:Motorcycle / Scooter
• Sealed Type:Sealed
• Maintenance Type:Free
• Certification:UL
• Certification:ce
• Brand Name:XUPAI
• Model Number:6-DZM-12
• Weight:4.2kg

6 dzm 12 lead acid battery for scooter 48V 12Ah

SLA
Size 151(L) x 100(D) x 99(H)mm
Charge Current 0.2512-0.312(A) for 10-14 hours
Discharge Current 20 hr rate 0.6(A)
Battery Casing:ABS

Capacity
20hr rate (0.60A to 10.5V) 18Ah
10hr rate (1.20A to 10.5V) 16Ah
5hr rate (2.40A to 10.5V) 14.5Ah
3hr rate (4.00A to 10.5V) 13Ah
2hr rate (6.00A to 10.5V) 12Ah

Internal Resistance
Fully Charged Battery(20°C,68°F): below 13m Ohm
Max Discharge Current (5 sec):40A

Charging Methods
Floating Use :13.5-13.8V, Compensation co-efficient-3mv/cell/°C
Cycling Use:14.7-14.9V,Compensation co-efficient-5mv/cell/°C
Constant Voltage Charge:14.8V
Max charge current :0.3C(A)
Self Discharge Rate(20°C,68°F): Above 85%/3 Months

Operating Temperature Range
Discharge:-35 to 50°C(-31to 122°F)
Charge:-15 to 40°C(5 to 104°F)
Storage:-15 to 40°C(5 to 104°F)

RECHARGEABLE
Battery quantity: 1pc (4pcs/pack)
Charging Time: 10-12hr
Recharging Voltage: 14.8V

BATTERIES
Amp Hour Rating: 12Ah

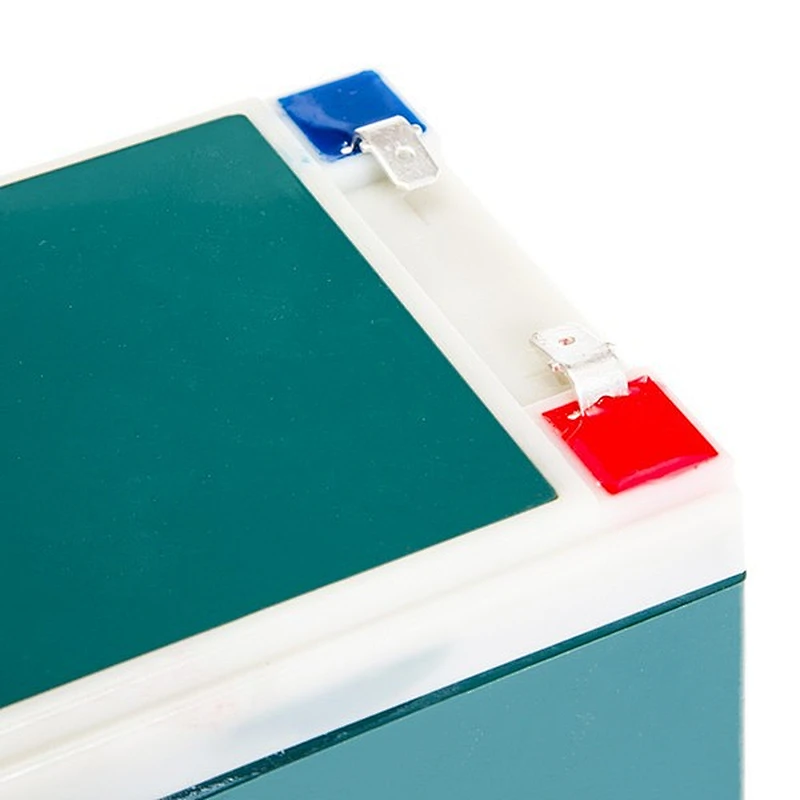

Connection Type: Spring Terminal(Pins)
2 Hour Capacity: 12Ah
3 Hour Capacity: 13Ah
5 Hour Capacity: 14.5Ah
10 Hour Capacity 16Ah
20 Hour Capacity 18Ah

Battery Usage Rechargeable
Battery Chemical Composition: Sealed Lead Acid (SLA)

DC VOLTAGE RATING
DC Voltage: 12V

PRODUCT DIMENSIONS (Tolorance.2mm)
Item Length 150mm
Item Height 100mm
Item Depth 100mm

PACKAGED DIMENSIONS
Packaged Volume 0.010CBM/CTN
Packaged Weight 17.7kgs(N.W.: 17.2KGS)
Packaged Length 31.2cm
Packaged Width 21cm
Packaged Height 14cm
20"Container:3800pcs

Warranty: 12-15 Months

 Battery Information:

Packaging & Delivery:

Packaging Details:Paper Box or White Box and Pallet

Delivery Details:All goods are in warehouse and can be deliveried within  1-3 Days
