- Place of Origin:CN;JIA
- Usage:Motorcycle / Scooter
- Voltage:12V
- Sealed Type:Sealed
- Maintenance Type:Free
- Brand Name:XUPAI
- Model Number:6-DZM-20
- Size:180*76*170MM
- Weight:7.0 KG
- Nominal Capacity:20AH
6-DZM-32 12v/48v 32 AH deep cycle VRLA battery for ebike
Other Models for DZM(Power battery)Series
Ⅰ.Advatages than others:
l Stable discharging: 15% more working time
l 8% longer Lift time
360 Times @100%DOD 480 Times @80%DOD 600 Times @50%DOD | 1310 Times @30%DOD 1600 Times @20%DOD |
l Eco-friendly: non-cadmium technology.
l Maintenance-Free Operation:Absorbent Glass Mat (AGM) technology
Ⅱ. DZM(Power battery)Series with Different Capapcity
|
|
| XUPAI BATTERY |
|
| |||
Lead Acid | Nominal | Discharge | Nominal | External Dimensions/mm | Weight | |||
Battery | Voltage | Time | Voltage | Length | Width | Height | Total Heig | /kg |
Model | /V | /Hrs | /V |
|
|
| ht(+2) |
|
6-DZM-10 | 12 | 2 | 12 | 151 | 100 | 95 | 95 | 4.2 |
6-DZM-12 | 12 | 2 | 12 | 151 | 100 | 97 | 97 | 4.3 |
6-DZM-17 | 12 | 2 | 12 | 180 | 76 | 152 | 152 | 6.3 |
6-DZM-20 | 12 | 2 | 12 | 180 | 76 | 170 | 170 | 7.0 |
6-DZM-28 | 12 | 2 | 12 | 175 | 166 | 125 | 125 | 9.8 |
6-DZM-32 | 12 | 2 | 12 | 175 | 166 | 125 | 125 | 10.5 |
6-DZM-48 | 12 | 2 | 12 | 196 | 164 | 175 | 175 | 16.0 |
6-FM-35 | 12 | 10 | 12 | 267 | 77 | 170 | 170 | 10.2 |
6-FM-42 | 12 | 10 | 12 | 220 | 120 | 175 | 175 | 12.5 |
6-FM-50 | 12 | 10 | 12 | 224 | 120 | 175 | 177 | 13.35 |
6-FM-14 | 16 | 2 | 16 | 201 | 112 | 102 | 102 | 7.0 |
6-FM-20 | 16 | 2 | 16 | 250 | 100 | 130 | 130 | 9.6 |
6-FM-28 | 16 | 2 | 16 | 250 | 166 | 125 | 125 | 12.7 |
Ⅲ.Technical Specifications:
More Products(Click for details):
1.DZM Series--------------For Electrical two-wheels Vehicels
(such asE-bike/E-scooters...)
2.EVF Series-----------------For 3/4 wheels Vehicles of Low Speed
(such as Electric cars/Golf cars/Tourist mini bus/car/Cargo van/Ambulance Vehicles/Patrol Car...)
3.CNF(J) and GFM Series---------------GEL Battery and AGM Battery
(For storage or back up battery use,such as solar battery,wind battery,telecom battery,ups battery...)
4.Lithium Ion Battery---------------------------For Electrical Vehicels
5.QW Series---------------------------For Automotive starting-stop
6.Water low maintanence battery
(For QW Series and water battery,please Contact us by email or TM for details)

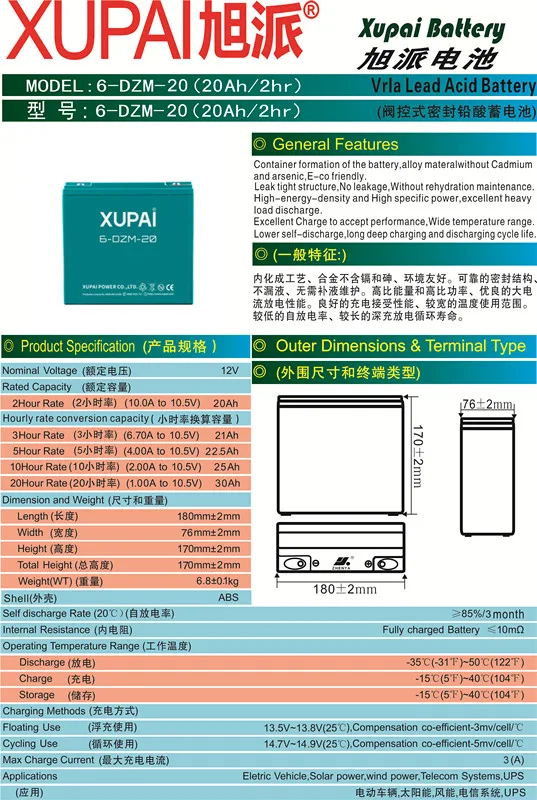

6-DZM-20 XUPAI BATTERY | |
Model | 6-DZM-20(12V 20AH) |
Type | Lead acid battery |
Nominal Voltage | 12V |
Rated Capacity | 20AH |
Dimension | 180*76*170mm |
Weight | 7kg |
Maintenance Type | Free |
Leading Feature | a. 15% more working time |
b. 8% longer service life | |
c. Repair rate is low (less than 3%) | |
d. Internalization of copper | |
e. Cadmium-free green. | |
f. 3rd largest supplier in China with perfect pre-sale service | |
Self Discharge Range(20°C) | 3% per 28days |
Internal Resistance | Fully charged Battery≤15mΩ |
Recycle times | 650times |
Discharge Time | 2 hours |
Case | ABS |
Customizer | Available |
Stock | Yes we have large quantity in stock, welcome to have an order |
FOB Port | Shang, Ningbo, Shenzhen |
MOQ | 200pcs |
Certificate | ISO, CE |
Package Detail | Paper Carton with Wooden Pallet |
Payment | T/T;L/C |
XUPAI Battery-one of the top three battery manufacturer in China.
Our batteries are for electric vehicles including gold carts.
With more than 20 years' experience in battery production,now we have got more than 20 patents in prodution technical and covers an area of 1070000 square meters and more than 600 employees.
