- Place of Origin:CN
- Certification:UL
- Certification:ce
- Type:Lead Acid Battery | AGM Battery
- Brand Name:XUPAI
- Model Number:6-DZM-24
Size:L185*W105*H130MM
Capacity:12V 24AH
Type:Lead Acid Battery
Discharge Time:2 (HRS)
Terminal:Screw M5
Weight:7.30Kg
Package:
4PCS/CTN
GW/NW:29.8/29.2KGS
20'':2320PCS

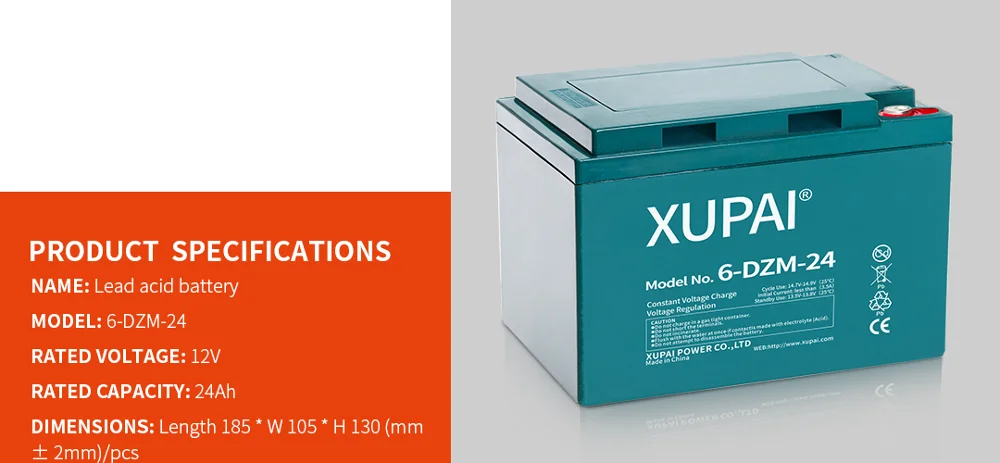

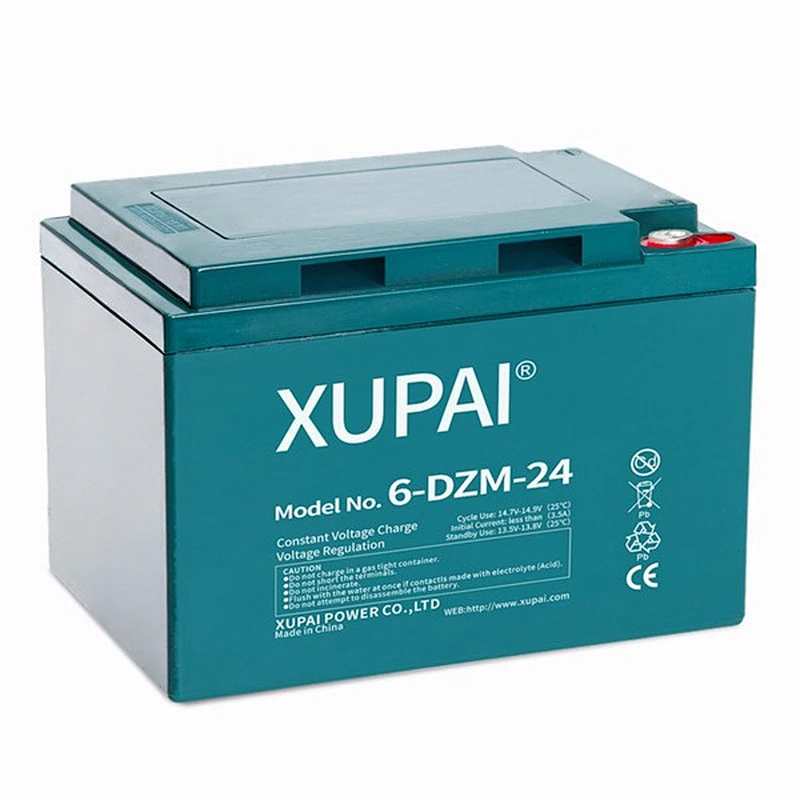

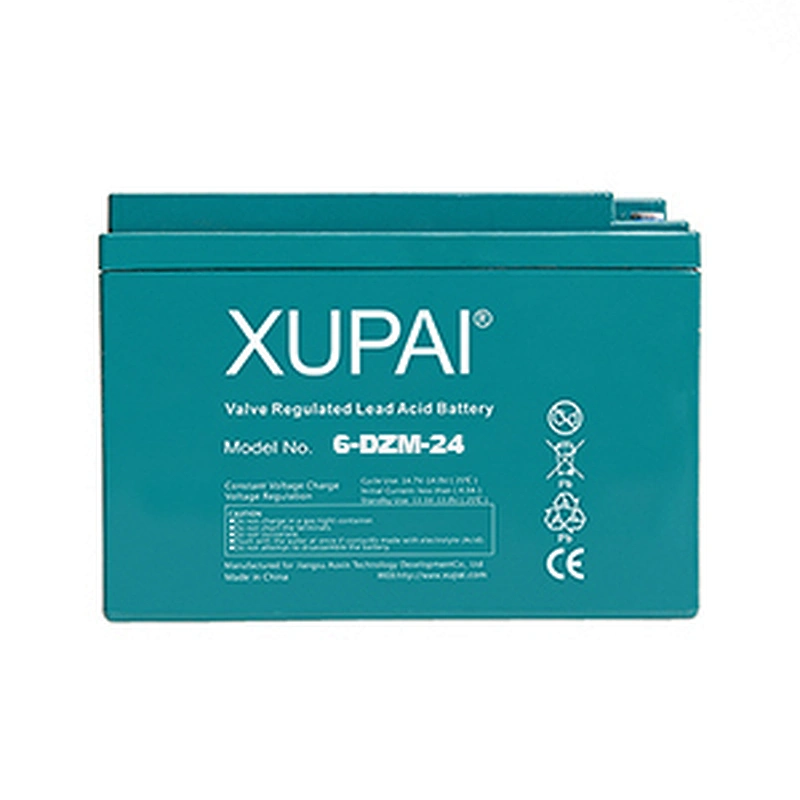

Product Description
| Model | 6-DZM-24 | Nominal Voltage | 12V | Rated Capacity | 24AH |
Type
| Lead Acid Battery | Dimension |
185*105*130MM | Weight | 7.300KGS |
| Certificate | ISO9001, ISO14001, CE, UL | MOQ | 0 pcs/item | Package Detail | Paper Carton with Wooden Pallet |
Payment Terms
| T/T or L/C | Main Market | India,Turkey,etc. | Delivery Time | 7-15 Days |
Packaging & Shipping
Packaging & Delivery:
Packaging Details:Paper Box or White Box(with Wooden Pallet)
Delivery Details:All goods are in warehouse and can be deliveried within 7-15 Days
Product Specification
XUPAI BATTERY | ||||||||
Lead Acid | Nominal | Discharge | Rated | External Dimensions/mm |
| |||
| Battery | Voltage | Time | Capacity | Length | Width | Height | Total Height | Weight |
Model | (V) | (HRS) | (AH) | (MM+-2) | (KGS) | |||
| 6-DZM-10 | 12 | 2 | 10 | 151 | 100 | 95 | 95 | 4.2 |
6-DZM-12 | 12 | 2 | 12 | 151 | 100 | 97 | 97 | 4.3 |
| 6-DZM-17 | 12 | 2 | 17 | 180 | 76 | 152 | 152 | 6.3 |
| 6-DZM-20 | 12 | 2 | 20 | 180 | 76 | 170 | 170 | 7.0 |
| 6-DZM-24 | 12 | 2 | 24 | 185 | 105 | 130 | 130 | 7.3 |
| 6-DZM-28 | 12 | 2 | 28 | 175 | 166 | 125 | 125 | 9.8 |
6-DZM-32 | 12 | 2 | 32 | 175 | 166 | 125 | 125- | 10.5 |
| 6-DZM-48 | 12 | 2 | 48 | 196 | 164 | 175 | 175 | 16.0 |
6-FM-35 | 12 | 10 | 35 | 267 | 77 | 170 | 170 | 10.2 |
| 6-FM-42 | 12 | 10 | 42 | 220 | 120 | 175 | 175 | 12.5 |
6-FM-50 | 12 | 10 | 50 | 224 | 120 | 175 | 177 | 13.35 |
8-DZM-14 | 16 | 2 | 14 | 201 | 112 | 102 | 102 | 7.0 |
| 8-DZM-20 | 16 | 2 | 20 | 250 | 100 | 130 | 130 | 9.6 |
8-DZM-28 | 16 | 2 | 28 | 250 | 166 | 125 | 125 | 12.7 |
Delivery Time:
All the goods are in warehouse and Can be deliveried within 7-15 days after received your payment.
