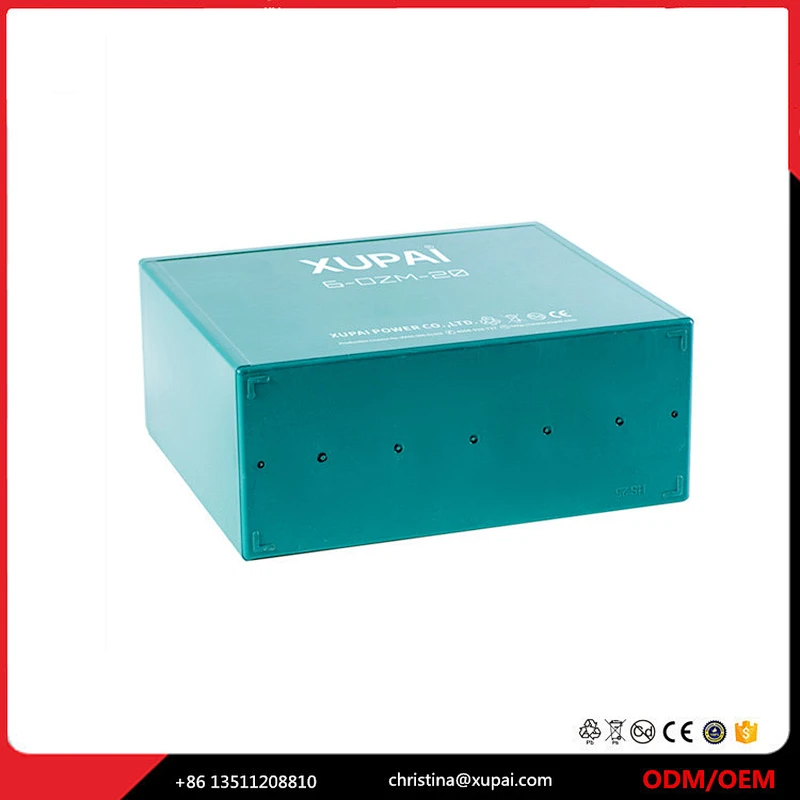

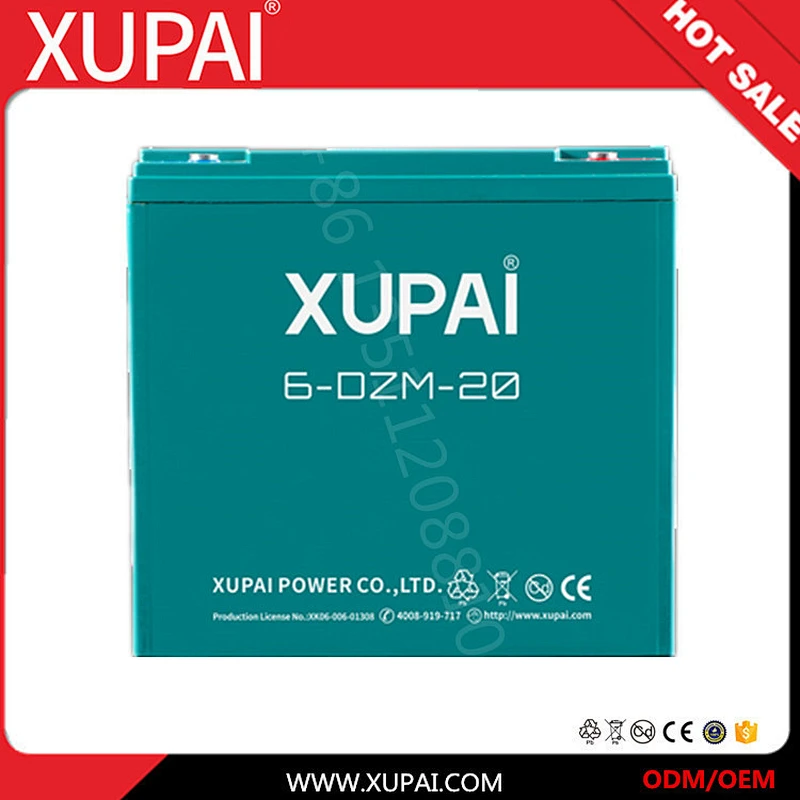

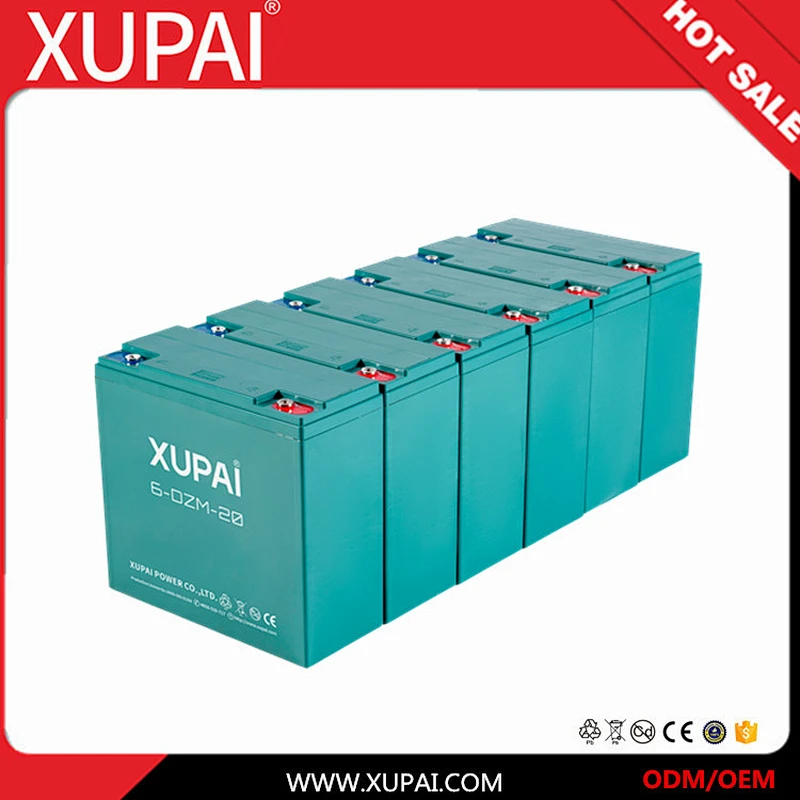

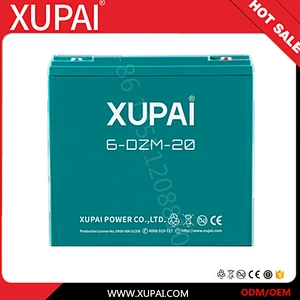

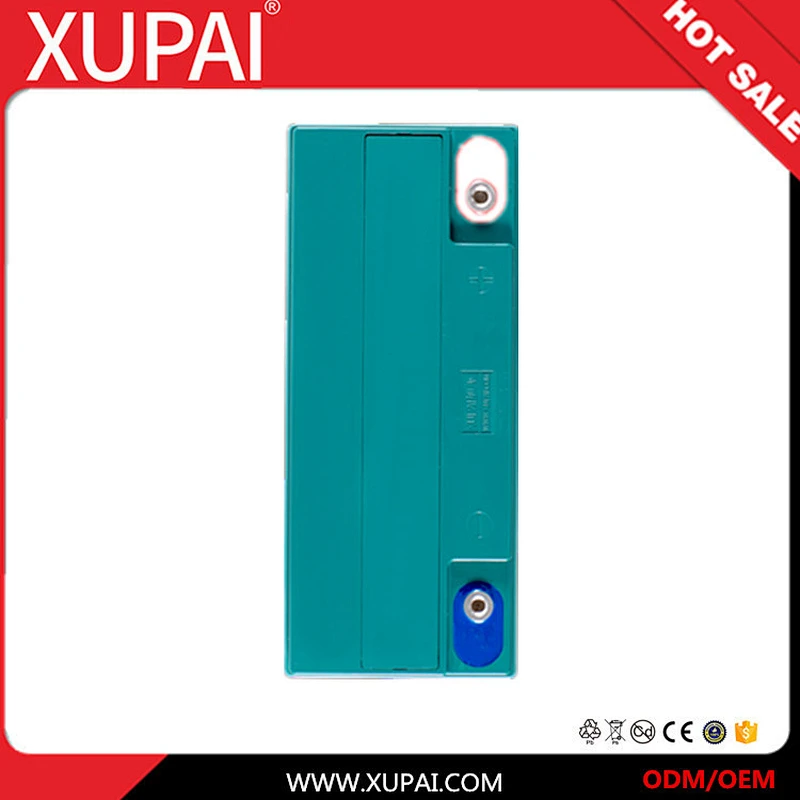

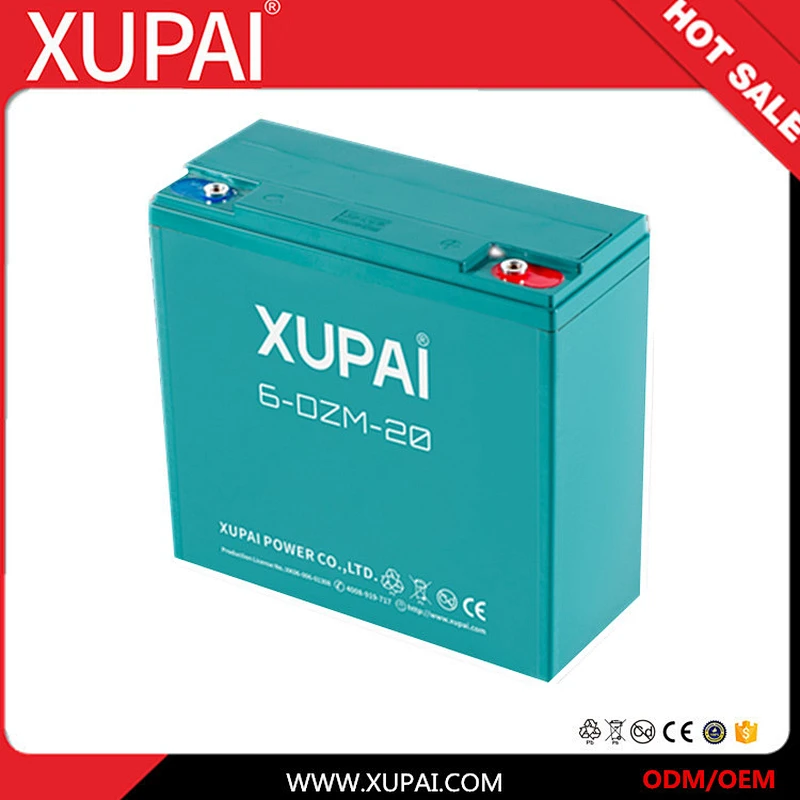

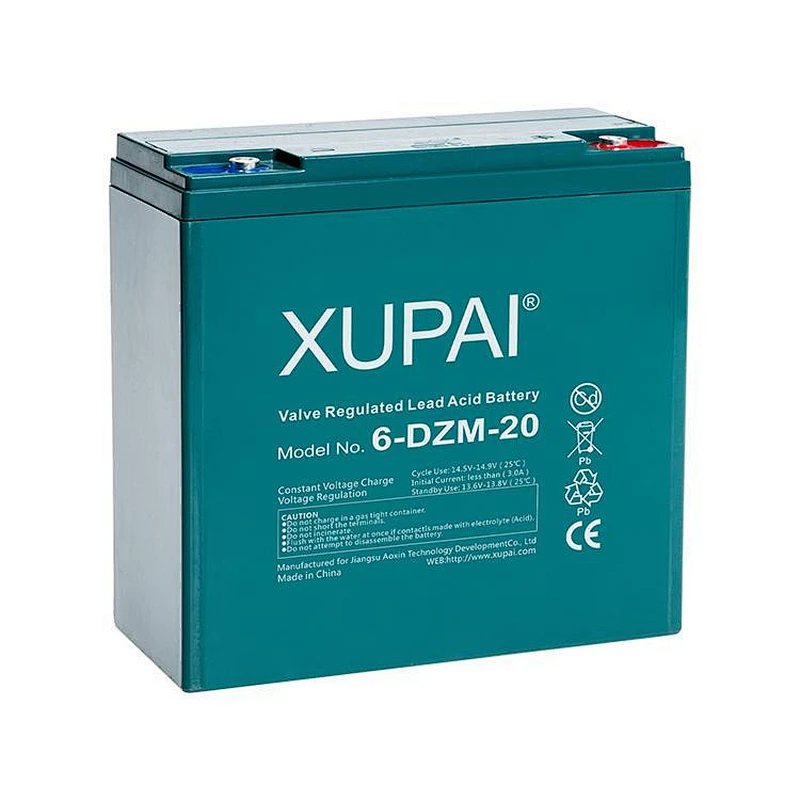

6-DZM-20 12V 20A e-Scooter battery

Model NO.: 6-DZM-20
Price:: USD 1.00-30.00 / pieces
Delivery: FOB
Minimum order quantity: 200 pieces
Supply Ability: 50000 pieces / Day
Country of Origin: Shanghai

Quantity:

Product Description

Place of Origin:CN;JIA
Voltage:12V
Sealed Type:Sealed
Maintenance Type:Free
Usage:E-bike/ wheelchair
Brand Name:XUPAI
Model Number:6-DZM-20
Size:180*76*170MM
Weight:7.0
Nominal Capacity:20AH

Product Description

EVF battery

Specification:

XUPAI BATTERY
Model	6-EVF-38(12V 38AH)
Type	Lead acid battery
Nominal Voltage	12V
Rated Capacity	120AH
Dimension	223108175mm
Weight	11.8kg
Maintenance Type	Free
Leading Feature	15% more working time
	8% longer service life
	Cadmium-free green
	3rd largest supplier in China
Self Discharge Range(20°C)	3% per 28days
Internal Resistance	Fully charged Battery≤15mΩ
Recycle times	650times
Discharge Time	2 hours
Case	ABS
Customizer	Available
Stock	Yes we have large quantity in stock, welcome to have an order
Certificate	ISO, CE
MOQ	200pcs
Package Detail	Paper Carton with Wooden Pallet
Payment	T/T;L/C

Advatages than others:

1):Maintenance-Free Operation

Absorbent Glass Mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance. During the expected float service life of MCA batteries, no need to check the specific gravity of the electrolyte or add water.

2 ): Good Discharging Ability

Tight assembly technology ensures an excellent high-rate discharge performance.

3 ): Long Service Life

A unique corrosion-resistant grid alloy ensures MCA batteries have long service life.

4 ): Low Self Discharge

Using high purity raw materials ensures MCA batteries have less self-discharge.

5 ): Environmental & Non-polluting

Gas Recombination technology ensures the battery high seal reacting rate, which can prevent the acid fog from separating out.

6 ): Safe & Reliable

Efficient venting system automatically release excess gas when the pressure rises above the normal level & reseals the valves when it returns to the normal rate, which can protect the battery from bursting.

Photos for Details:

Product Application(Click photos for details):

1.DZM Series--------------For Electrical two wheels or three wheels Vehicels

( E-bike/Electric tricycle/Quad bikes/Electric scooters/Mobility scooters etc/Ride-on toys/powered wheelchairs Semi-traction lawn mowers)

2.EVF Series-----------------For Four wheels Low Speed Vehicles

( Electric cars/Golf cars/Tourist mini bus/car/Cargo van/Ambulance Vehicles/Patrol Car...)

3.CNF(J) and GFM Series---------------------For Power storage and power back up

(Portable television and video equipment/Lifting equipment/solar panels/wind power/UPS/Mobile Base Station

4.QW Series--------------------------------------------For Automotive starting-stop

(Automitive starting-stop battery)

5.Lithium Battery----------------------------------For Electrical two wheels or three wheels Vehicels

6.Water low maintanence battery

DZM/FM/EVF SERIES MODEL LIST
MODEL	VOLTAGE (V)	Discharge Time (hrs)	Rated Capacity (Ah)	BATTERY SIZE(mm±2mm)			Weight
MODEL	VOLTAGE (V)	Discharge Time (hrs)	Rated Capacity (Ah)	Length	Width	Height	(Kg±0.5)
6-DZM-12	12	2	12	151	100	99	4.3
6-DZM-20	12	2	20	180	76	170	6.9
6-DZM-24	12	2	24	185	105	130	7.3
6-DZM-28	12	2	28	175	166	125	9.8
6-FM-35	12	10	35	266	76	170	10.2
6-FM-35	12	10	35	223	93	175	10.2
6-FM-42	12	10	42	223	120	175	12.5
6-FM-38	12	10	38	223	108	175	11.8
6-FM-50	12	10	50	223	120	175	13.4
8-DZM-14	16	2	14	201	112	102	7
8-DZM-20	16	2	20	250	100	130	9.8
8-DZM-25	16	2	25	250	115	130	11.5
8-DZM-28	16	2	28	230	166	125	13
3-EVF-180	6	3	180	243	188	275	35
3-EVF-200	6	3	200	260	180	280	36
4-EVF-150	8	3	150	260	180	280	36
6-EVF-65	12	3	65	325	175	170	23.5
6-EVF-100	12	3	100	330	175	215	33
6-EVF-120	12	3	120	405	170	240	41.5
6-EVF-120	12	3	120	340	170	255	39.5
6-EVF-150	12	3	150	483	170	240	52.5
