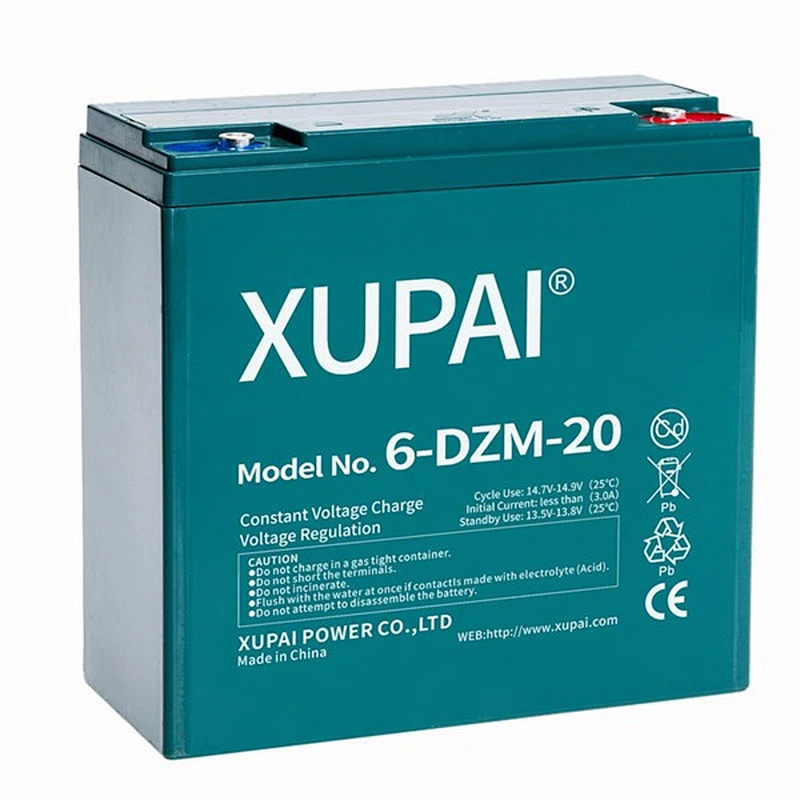

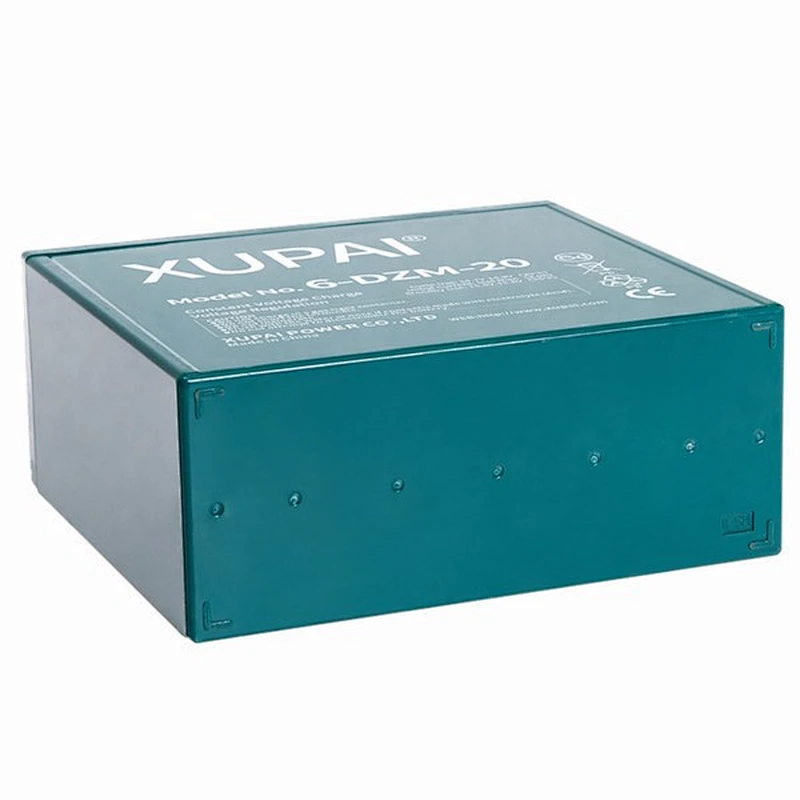

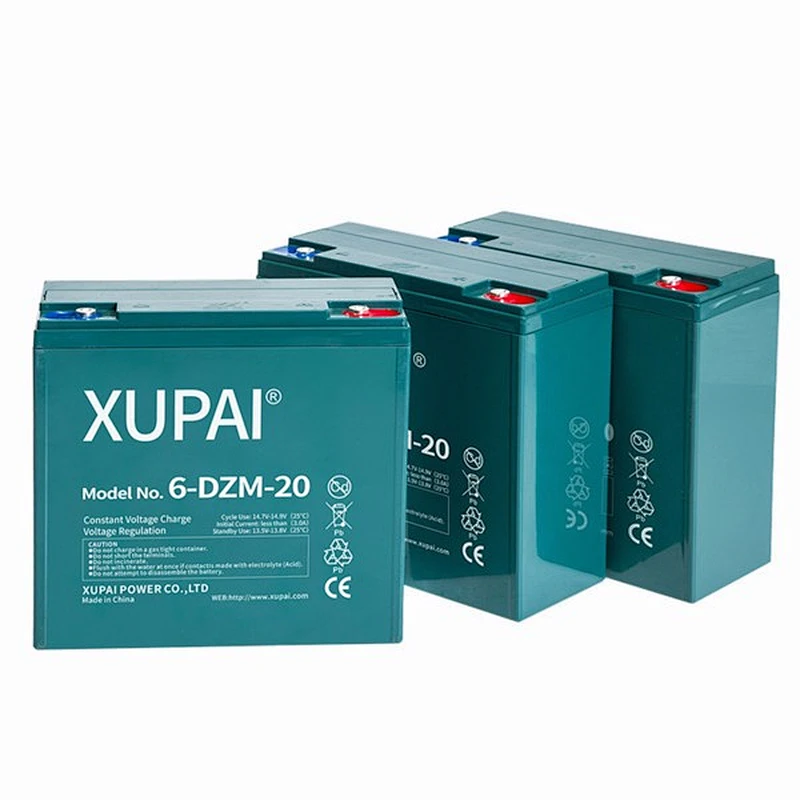

48V 20Ah e rickshaw battery for ebike 6 dzm 20

48V 20Ah e rickshaw battery for ebike 6 dzm 20

Model NO.: 6-DZM-20
Price:: USD 1.00-50.00 / pieces
Delivery: FOB
Minimum order quantity: 200 pieces
Supply Ability: 10000 pieces / Day
Country of Origin: Shanghai Seaport within 3-7Days

Quantity:

Product Description

Place of Origin:CN
Usage:Motorcycle / Scooter
Sealed Type:Sealed
Maintenance Type:Free
Certification:UL
Certification:ce
Brand Name:XUPAI
Model Number:6-DZM-20
Weight:6.6kg

48V 20Ah e rickshaw battery for ebike 6 dzm 20

SLA
Size 180(L) x 76(D) x 170(H)mm
Charge Current 0.2512-0.312(A) for 10-14 hours
Discharge Current 20 hr rate 1.00(A)
Battery Casing:ABS

Capacity
20hr rate (1.00A to 10.5V) 27Ah
10hr rate (2.00A to 10.5V) 25Ah
5 hr rate (4.00A to 10.5V) 24Ah
3 hr rate (6.50A to 10.5V) 22Ah
2 hr rate (10.0A to 10.5V) 20Ah

Internal Resistance
Fully Charged Battery(20°C,68°F): below 15m Ohm
Max Discharge Current (5 sec):40A

Charging Methods
Floating Use :13.5-13.8V, Compensation co-efficient-3mv/cell/°C
Cycling Use:14.4-15V,Compensation co-efficient-5mv/cell/°C
Constant Voltage Charge:14.8V
Max charge current :0.3C(A)
Self Discharge Rate(20°C,68°F): 3%/28 Days

Operating Temperature Range:
Discharge:-35 to 50°C(-31to 122°F)
Charge:-15 to 40°C(5 to 104°F)
Storage:-15 to 40°C(5 to 104°F)

RECHARGEABLE
Battery quantity: 1pc (4pcs/pack)
Charging Time: 10-12hr
Recharging Voltage: 14.8V

BATTERIES
Amp Hour Rating: 20Ah
Connection Type: Spring Terminal(Pins)
2 Hour Capacity: 20Ah
3 Hour Capacity: 22Ah
5 Hour Capacity: 24Ah
10 Hour Capacity 25Ah
20 Hour Capacity 27Ah

Battery Usage Rechargeable
Battery Chemical Composition: Sealed Lead Acid (SLA)

DC VOLTAGE RATING
DC Voltage: 12V

PACKAGED DIMENSIONS
Packaged Volume 0.012CBM/CTN
Packaged Weight 28.2kgs(N.W.: 27.6KGS)
Packaged Length 32.2cm
Packaged Width 19.1cm
Packaged Height 19.5cm
20"Container:2300pcs

Warranty: 12-15 Months

Lead Acid Battery china manufacturer for E-scooter, electric scooter , e-bicycle with CE/ISO Certificate Made in China

What's kind of Quality of our 6-DZM-20 12V Battery?

*Deep Cycle Battery

*OEM Available

*Eco-friendly

*MSDS for Shipment

What's our 6-DZM-20 12V Battery information in Details?

Size:L180*W76*H170MM
Capacity:12V 20AH
Type:Lead Acid Battery
Discharge Time:2 (HRS)
Terminal:Screw M5

Weight:6.90KGS

What's package for our 6-DZM-20 12V battery?

4PCS/CTN CTN Size:32.2*19.1*19.5CM
GW/NW:28.4/28.2KGS
20'':2384PCS

What's the cycle life for our 6-DZM-20 battery?

360 Times @100%DOD

480 Times @80%DOD

600 Times @50%DOD

1310 Times @30%DOD

1600 Times @20%DOD

Do you have pictures in detail?

Model	6-DZM-20	Nominal Voltage	12V	Rated Capacity	20AH
Type	Lead Acid Battery	Dimension	18076170MM	Weight	6.90 KGS
Certificate	ISO9001, ISO14001, CE, UL	MOQ	0 pcs/item	Package Detail	Paper Carton with Wooden Pallet
Payment Terms	T/T or L/C	Main Market	India,Turkey,etc.	Delivery Time	1 Days

Packaging & Delivery:

Packaging Details:Paper Box or White Box(with Wooden Pallet)

Delivery Details:All goods are in warehouse and can be deliveried within 1 Days

Products Specification:

Lead Acid	Nominal	Discharge	Rated	External Dimensions/mm
Battery	Voltage	Time	Capacity	Length	Width	Height	Total Height	Weight
Model	(V)	(HRS)	(AH)				(MM+-2)	(KGS)
6-DZM-10	12	2	10	151	100	95	95	4.2
6-DZM-12	12	2	12	151	100	97	97	4.3
6-DZM-17	12	2	17	180	76	152	152	6.3
6-DZM-20	12	2	20	180	76	170	170	6.6
6-DZM-24	12	2	24	185	105	130	130	7.3
6-DZM-28	12	2	28	175	166	125	125	9.8
6-DZM-32	12	2	32	175	166	125	125-	10.5
6-DZM-48	12	2	48	196	164	175	175	16.0
6-FM-35	12	10	35	267	77	170	170	10.2
6-FM-42	12	10	42	220	120	175	175	12.5
6-FM-50	12	10	50	224	120	175	177	13.35
8-DZM-14	16	2	14	201	112	102	102	7.0
8-DZM-20	16	2	20	250	100	130	130	9.6
8-DZM-28	16	2	28	250	166	125	125	12.7
