- Place of Origin:CN;JIA
- Usage:UPS
- Voltage:12V
- Sealed Type:Sealed
- Maintenance Type:Free
- Brand Name:XUPAI
- Model Number:6-CNF(J)-80
- Size:330*174*215/220mm
- Weight:25.5kg for GEL battery
- Nominal Capacity:80ah
12V 7 AH 6-CNF(J)-7 free maintenacelead acid storage battery for solar panel
Specification:
XUPAI BATTERY | |
Model | 6-CNF(J)-7(12V 7AH) |
Type | Lead acid battery |
Nominal Voltage | 12V |
Rated Capacity | 7 AH |
Dimension | 151*65*95/99mm |
Weight | 2.4kg for GEL battery and 2.3kg for AGM battery |
Maintenance Type | Free |
Leading Feature | 15% more working time |
8% longer service life | |
Cadmium-free green | |
3rd largest supplier in China | |
Self Discharge Range(20°C) | 3% per 28days |
Internal Resistance | Fully charged Battery≤15mΩ |
Recycle times | 650times |
Discharge Time | 2 hours |
Case | ABS |
Customizer | Available |
Stock | Yes we have large quantity in stock, welcome to have an order |
Certificate | ISO, CE |
MOQ | 200pcs |
Package Detail | Paper Carton with Wooden Pallet |
Payment | T/T;L/C |
Advatages than others:
1):Maintenance-Free Operation
Absorbent Glass Mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance. During the expected float service life of MCA batteries, no need to check the specific gravity of the electrolyte or add water.
2 ): Good Discharging Ability
Tight assembly technology ensures an excellent high-rate discharge performance.
360 Times @100%DOD 480 Times @80%DOD 600 Times @50%DOD | 1310 Times @30%DOD 1600 Times @20%DOD |
3 ): Long Service Life
A unique corrosion-resistant grid alloy ensures MCA batteries have long service life.
4 ): Low Self Discharge
Using high purity raw materials ensures MCA batteries have less self-discharge.
5 ): Environmental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate, which can prevent the acid fog from separating out.
6 ): Safe & Reliable
Efficient venting system automatically release excess gas when the pressure rises above the normal level & reseals the valves when it returns to the normal rate, which can protect the battery from bursting.

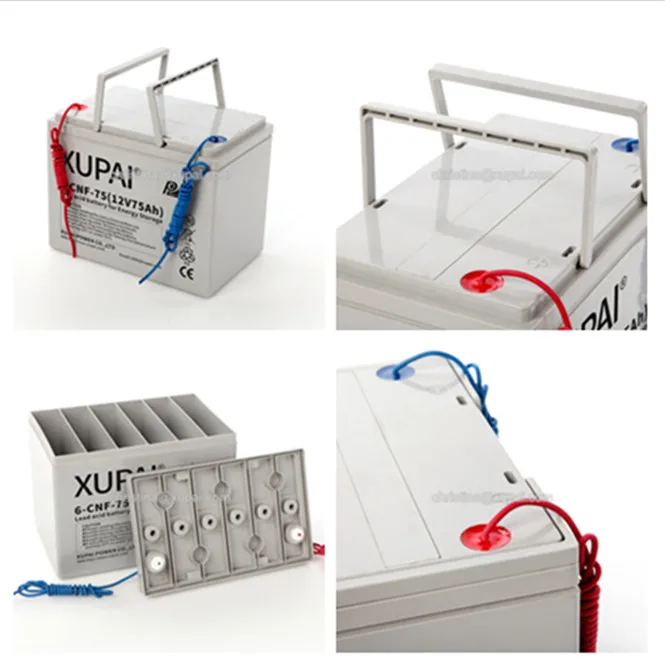

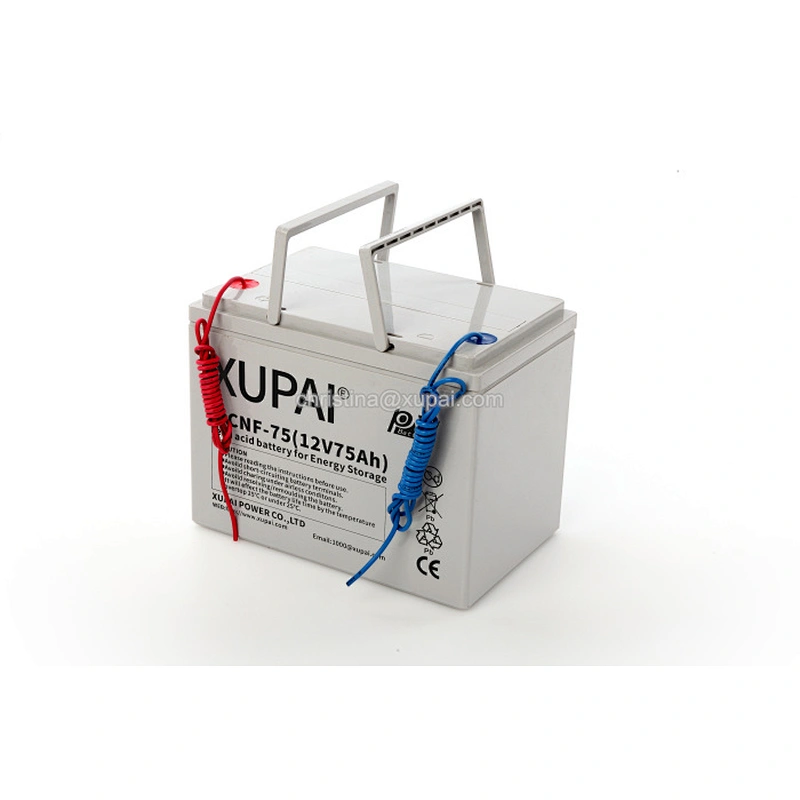

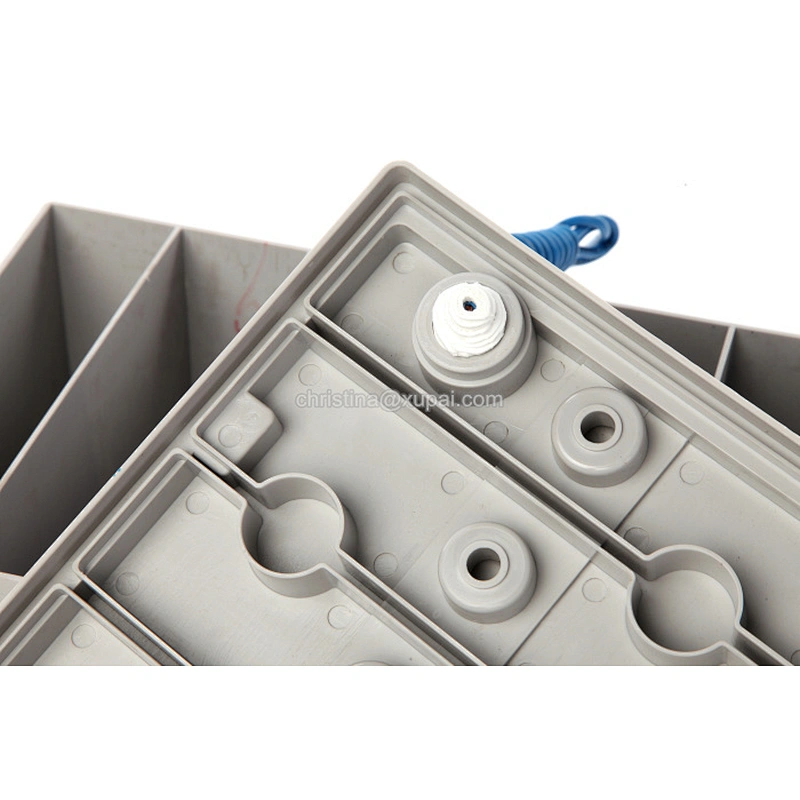

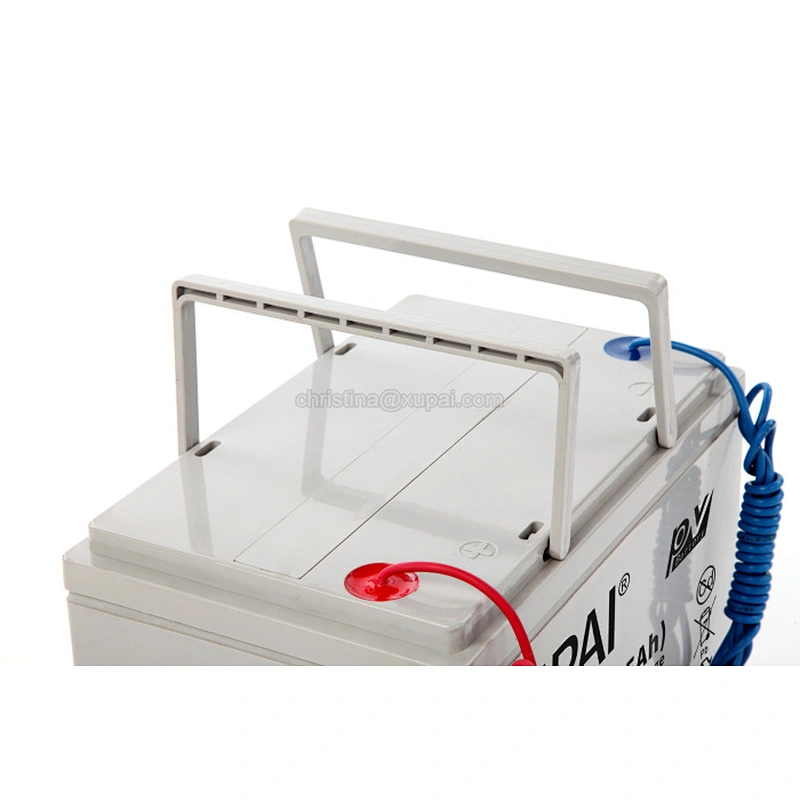

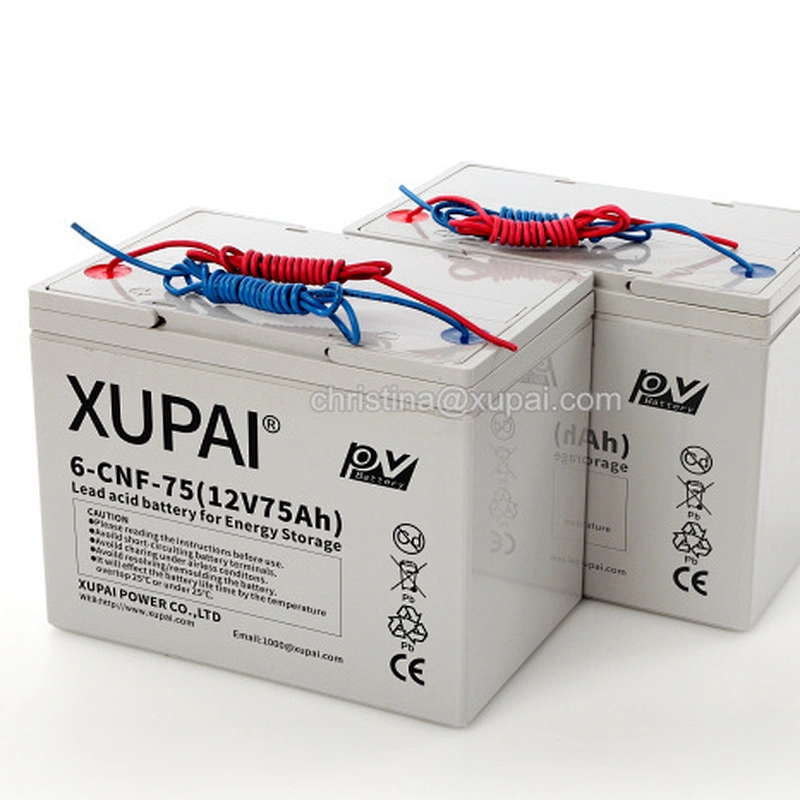

Photos for Details:
Product Application:
1: E-bike
2: Electric tricycle
3: Quad bikes
4: Electric scooters
5: Electric cars
6: Mobility scooters etc
7: Golf cars
8: Ride-on toys
9: Electric scooters
10: Battery-powered wheelchairs
11: Portable television and video equipment
12: Lifting equipment
13: Semi-traction lawn mowers
14: Besides our lead acid battery batteries pack used in store the green energy like solar power,wind power and UPS
Product Technical:
| No | Type | Related voltage(V) | Related | Size(mm±2mm) | Weight(kg) | Terminal | ||||
| Capacity(10hr) | Length | Width | Hight | Total Height | GEL type | AGM Type | ||||
| 1 | 6-CNF(J)-7 | 12 | 7 | 151 | 65 | 95 | 99 | 2.40 | 2.30 | Wire |
| 2 | 6-CNF(J)-12 | 12 | 12 | 151 | 99 | 97 | 101 | 4.00 | 3.80 | |
| 3 | 6-CNF(J)-20 | 12 | 24 | 181 | 77 | 170 | 175 | 6.90 | 6.50 | copper |
| 4 | 6-CNF(J)-24 | 12 | 24 | 178 | 167 | 125 | 128 | 9.00 | 8.80 | |
All Product Series:
There are 4 sub-brands under XUPAI:
Brand XUPAI
Brand JINGRICHAO
Brand SHENGMING
Brand BOLANG
With 4 productions sites below,now we have got a wide range of distributor net both at home and abroad:
Workshops:
Certificates:
Packing:Carton+wooden Case+Pallet(see photos for details),customized packing acceptable
Shipping:Depends on request
