- Type:Lead Acid Battery
- Voltage:12v
- Capacity:31 - 40Ah

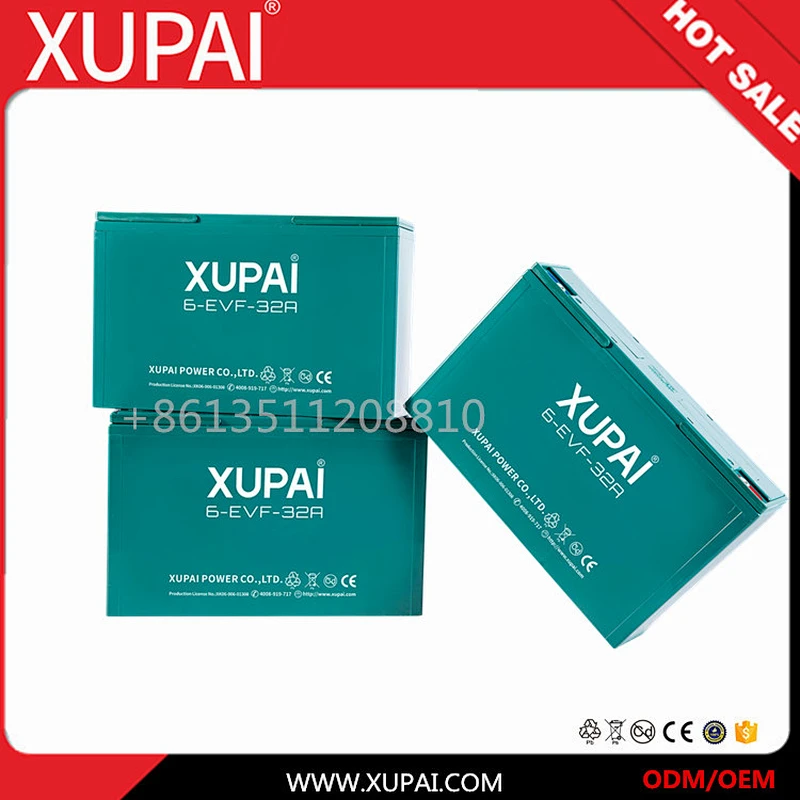

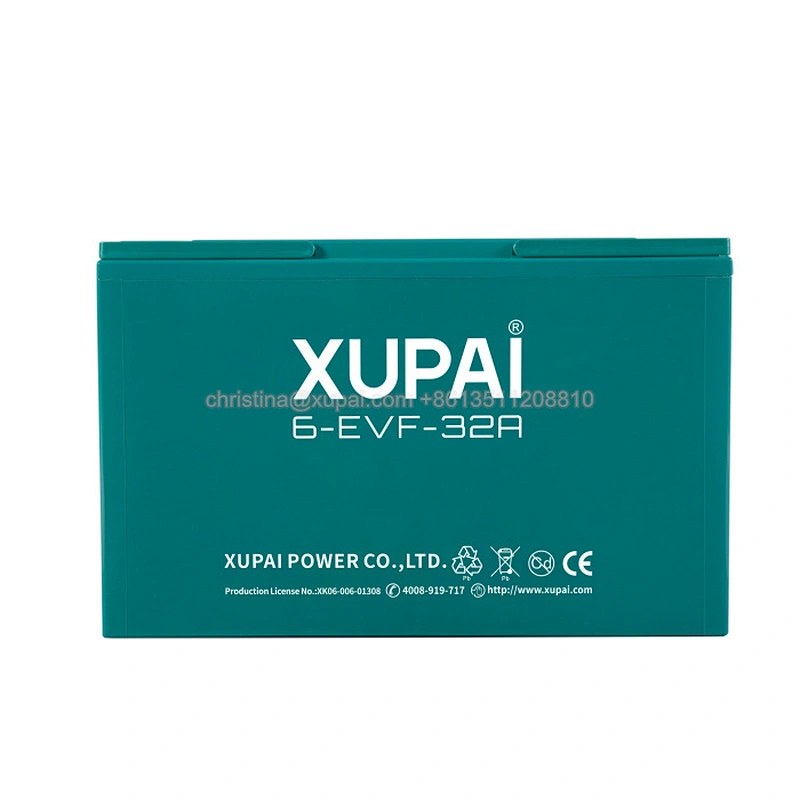

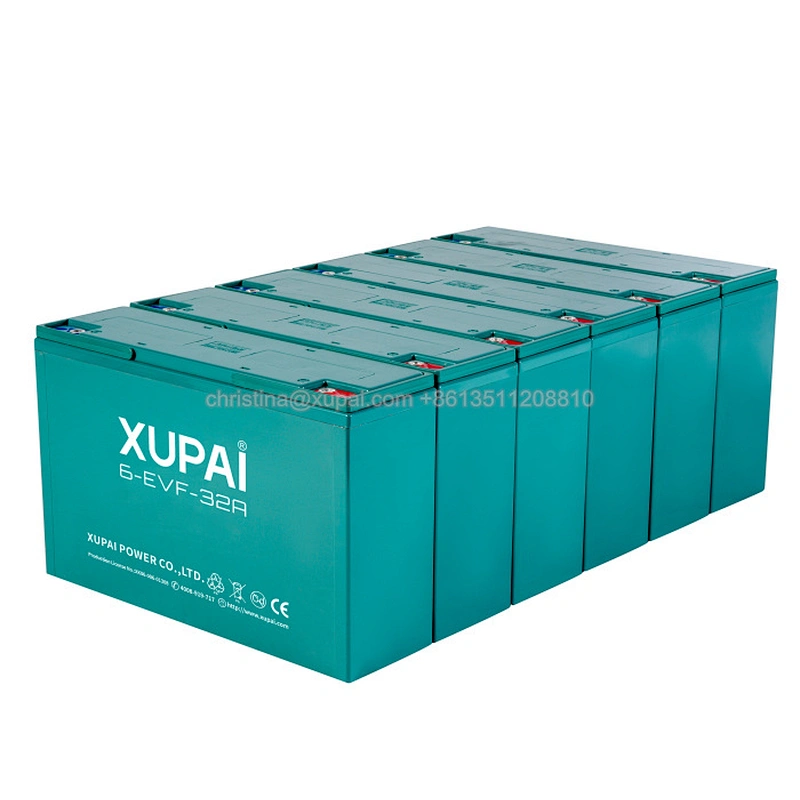

12V 32AH 6-EVF-32A free maintainace lead acid power battery for electrical tricycle or car
Specification:
XUPAI BATTERY | |
Model | 6-EVF-32A(12V 32AH) |
Type | Lead acid battery |
Nominal Voltage | 12V |
Rated Capacity | 32AH |
Dimension | 266*76*170mm |
Weight | 9.8kg |
Maintenance Type | Free |
Leading Feature | 15% more working time |
8% longer service life | |
Cadmium-free green | |
3rd largest supplier in China | |
Self Discharge Range(20°C) | 3% per 28days |
Internal Resistance | Fully charged Battery≤15mΩ |
Recycle times | 650times |
Discharge Time | 2 hours |
Case | ABS |
Customizer | Available |
Stock | Yes we have large quantity in stock, welcome to have an order |
Certificate | ISO, CE |
MOQ | 200pcs |
Package Detail | Paper Carton with Wooden Pallet |
Payment | T/T;L/C |
Advatages than others:
1):Maintenance-Free Operation
Absorbent Glass Mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance. During the expected float service life of MCA batteries, no need to check the specific gravity of the electrolyte or add water.
2 ): Good Discharging Ability
Tight assembly technology ensures an excellent high-rate discharge performance.
360 Times @100%DOD 480 Times @80%DOD 600 Times @50%DOD | 1310 Times @30%DOD 1600 Times @20%DOD |
3 ): Long Service Life
A unique corrosion-resistant grid alloy ensures MCA batteries have long service life.
4 ): Low Self Discharge
Using high purity raw materials ensures MCA batteries have less self-discharge.
5 ): Environmental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate, which can prevent the acid fog from separating out.
6 ): Safe & Reliable
Efficient venting system automatically release excess gas when the pressure rises above the normal level & reseals the valves when it returns to the normal rate, which can protect the battery from bursting.
Photos for Details:
Product Application:
1: E-bike
2: Electric tricycle
3: Quad bikes
4: Electric scooters
5: Electric cars
6: Mobility scooters etc
7: Golf cars
8: Ride-on toys
9: Electric scooters
10: Battery-powered wheelchairs
11: Portable television and video equipment
12: Lifting equipment
13: Semi-traction lawn mowers
14: Besides our lead acid battery batteries pack used in store the green energy like solar power,wind power and UPS
| XUPAI POWER BATTERY-EVF Series for Small Vehicle | |||||||||||
| No | MODEL | VOLTAGE(V) | CAPACITY(Ah) | SIZE(mm±2mm) | WEIGHT(kg) | ||||||
| 20hr | 10hr | 3hr | 2hr | LENGTH | WIDTH | HIGHT | TOTAL HIGHT | ||||
| 1 | 6-EVF-32A | 12 | 38 | 35 | 32 | 30 | 266 | 76 | 170 | 170 | 9.80 |
| 2 | 6-EVF-32B | 12 | 38 | 35 | 32 | 30 | 223 | 93 | 175 | 175 | 9.80 |
| 3 | 6-EVF-32 | 12 | 38 | 35 | 32 | 30 | 266 | 76 | 170 | 170 | 9.80 |
| 4 | 6-EVF-33 | 12 | 38 | 35 | 32 | 30 | 266 | 76 | 170 | 170 | 9.80 |
| 5 | 6-EVF-38 | 12 | 45 | 42 | 38 | 35 | 223 | 108 | 175 | 175 | 11.80 |
| 6 | 6-EVF-40 | 12 | 50 | 45 | 40 | 35 | 223 | 120 | 175 | 175 | 12.30 |
| 7 | 6-EVF-45 | 12 | 55 | 50 | 45 | 40 | 223 | 120 | 175 | 175 | 13.30 |
| 8 | 6-EVF-46 | 12 | 55 | 50 | 45 | 40 | 223 | 120 | 175 | 175 | 13.30 |
| 9 | 6-EVF-50 | 12 | 60 | 55 | 50 | 45 | 223 | 135 | 177 | 177 | 15.00 |
| 10 | 6-EVF-55 | 12 | 65 | 60 | 55 | 48 | 230 | 150 | 180 | 180 | 16.50 |
| 11 | 3-EVF-180 | 6 | 210 | 200 | 180 | 160 | 260 | 180 | 270 | 275 | 33.50 |
| 12 | 3-EVF-200 | 6 | 230 | 220 | 200 | 180 | 260 | 180 | 270 | 275 | 36.00 |
| 13 | 3-EVF-200S | 6 | 230 | 220 | 200 | 180 | 330 | 180 | 222 | 222 | 35.00 |
| 14 | 4-EVF-150 | 8 | 175 | 165 | 150 | 135 | 260 | 180 | 280 | 285 | 36.00 |
| 15 | 6-EVF-68 | 12 | 78 | 75 | 68 | 60 | 262 | 168 | 215 | 220 | 23.80 |
| 16 | 6-EVF-80 | 12 | 92 | 88 | 80 | 70 | 262 | 168 | 215 | 220 | 26.80 |
| 17 | 6-EVF-100 | 12 | 115 | 110 | 100 | 88 | 330 | 170 | 215 | 215 | 34.50 |
| 18 | 6-EVF-120 | 12 | 140 | 133 | 120 | 106 | 407 | 170 | 240 | 240 | 41.00 |
| 19 | 6-EVF-150 | 12 | 175 | 166 | 150 | 133 | 483 | 170 | 240 | 240 | 50.00 |
| 20 | 6-EVF-200 | 12 | 230 | 220 | 200 | 176 | 522 | 240 | 220 | 228 | 68.00 |
Product Technical:
All Product Series:
There are 4 sub-brands under XUPAI:
Brand XUPAI
Brand JINGRICHAO
Brand SHENGMING
Brand BOLANG
With 4 productions sites below,now we have got a wide range of distributor net both at home and abroad:
Workshops:
Certificates:
Packing:Carton+wooden Case+Pallet(see photos for details),customized packing acceptable
Shipping:Depends on request
