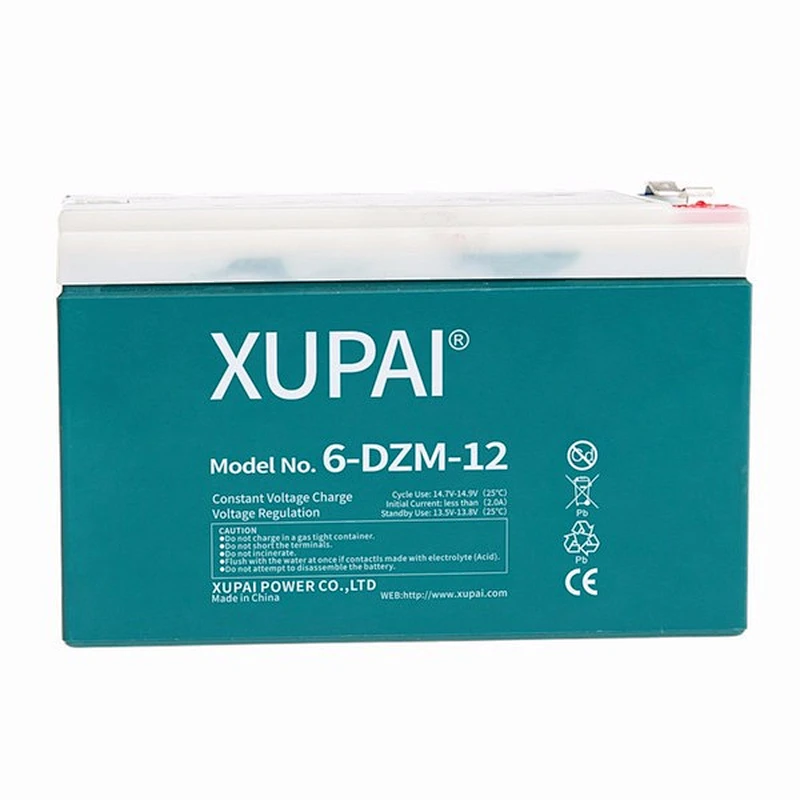

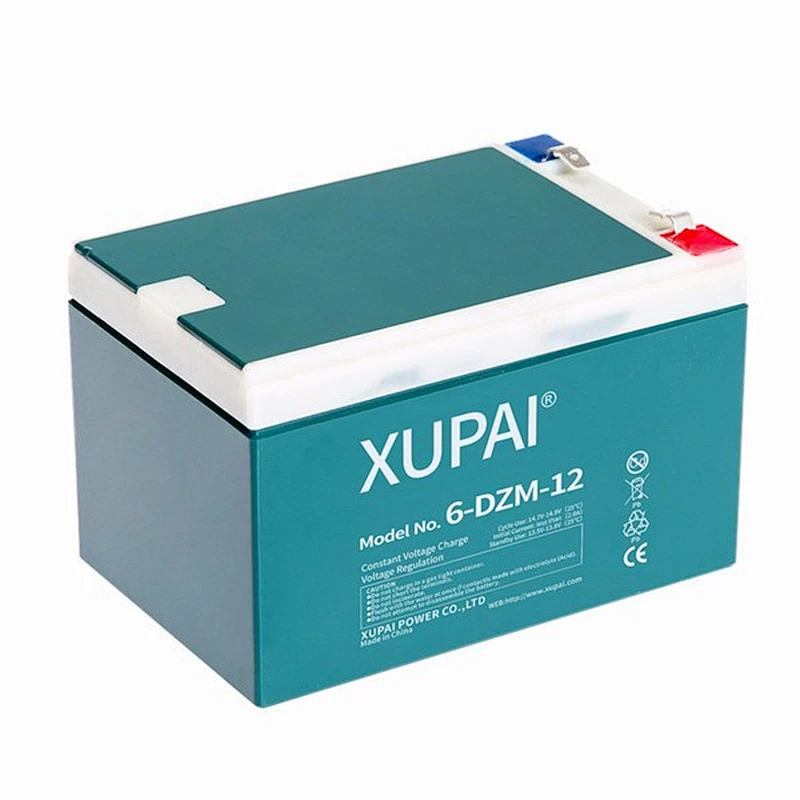

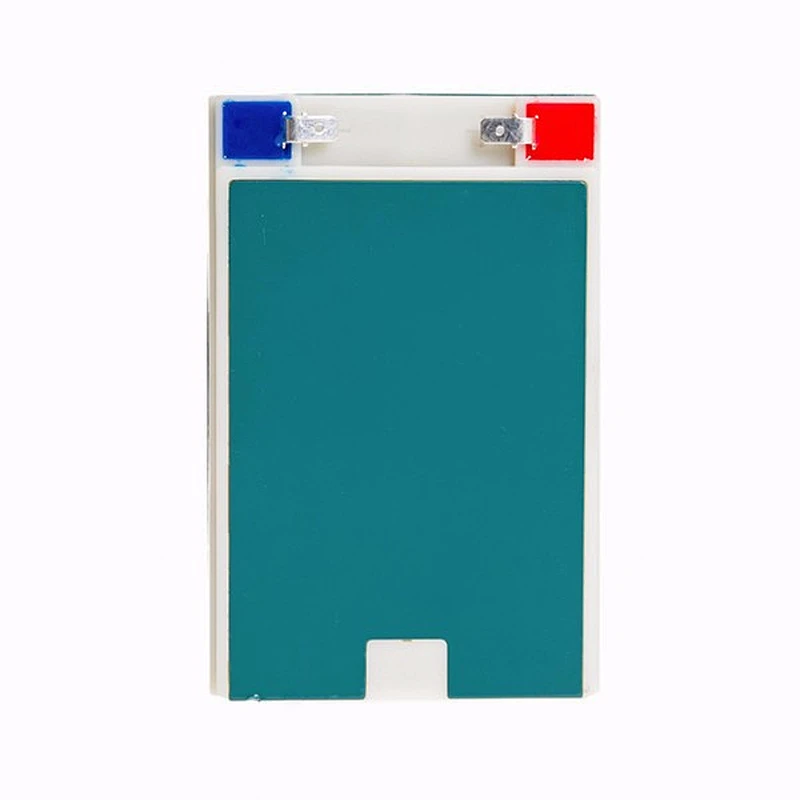

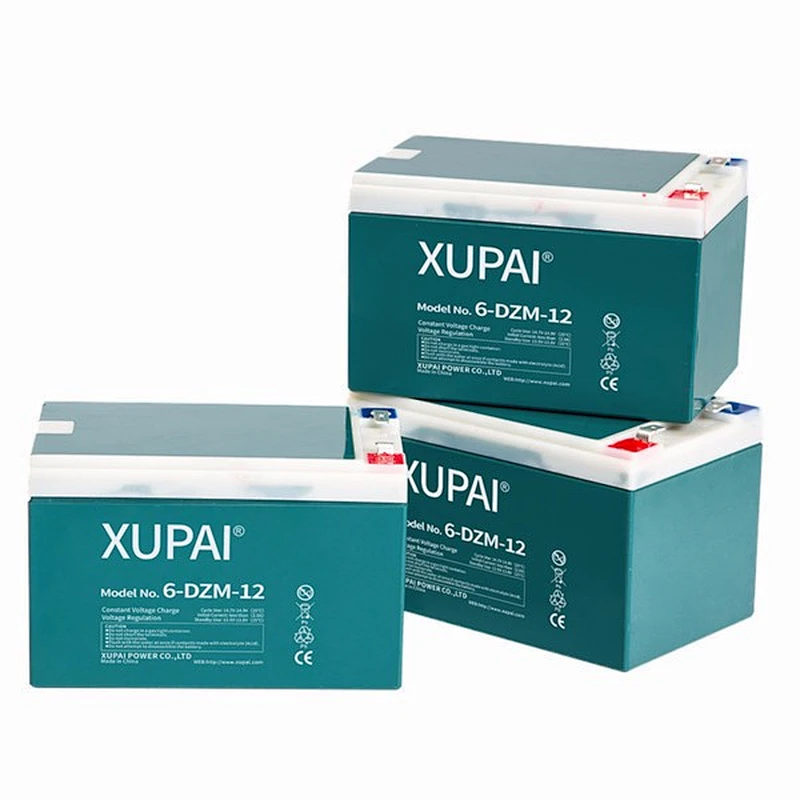

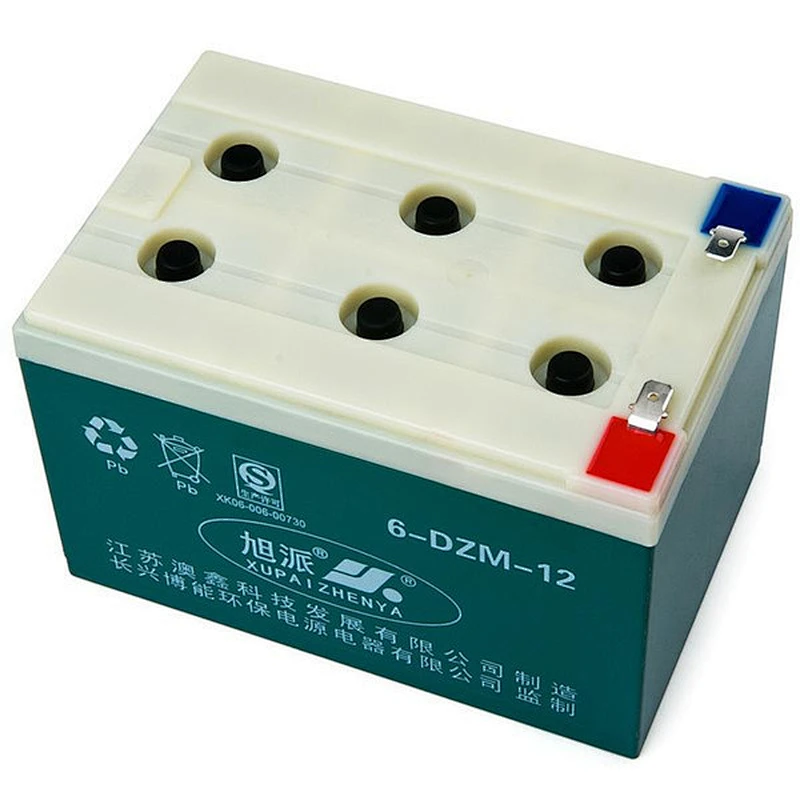

12v 12ah batteries 6-dzm-12 for electric scooter

12v 12ah batteries 6-dzm-12 for electric scooter

Model NO.: 6-DZM-12
Price:: USD 1.00-50.00 / pieces
Delivery: FOB
Minimum order quantity: 200 pieces
Supply Ability: 20000 pieces / Day
Country of Origin: Shanghai Seaport within 5-7 Days

Quantity:

Product Description

Place of Origin:CN;JIA
Usage:Motorcycle / Scooter
Sealed Type:Sealed
Maintenance Type:Free
Certification:UL
Certification:ce
Brand Name:XUPAI
Model Number:6-DZM-12
Weight:4.2kg

How to Buy Batteries:

SLA
Size 151(L) x 100(D) x 99(H)mm
Charge Current 0.2512-0.312(A) for 10-14 hours
Discharge Current 20 hr rate 0.6(A)
Battery Casing:ABS

Capacity
20hr rate (0.60A to 10.5V) 18Ah
10hr rate (1.20A to 10.5V) 16Ah
5hr rate (2.40A to 10.5V) 14.5Ah
3hr rate (4.00A to 10.5V) 13Ah
2hr rate (6.00A to 10.5V) 12Ah

Internal Resistance
Fully Charged Battery(20°C,68°F): below 13m Ohm
Max Discharge Current (5 sec):40A

Charging Methods
Floating Use :13.5-13.8V, Compensation co-efficient-3mv/cell/°C
Cycling Use:14.7-14.9V,Compensation co-efficient-5mv/cell/°C
Constant Voltage Charge:14.8V
Max charge current :0.3C(A)
Self Discharge Rate(20°C,68°F): Above 85%/3 Months

Operating Temperature Range
Discharge:-35 to 50°C(-31to 122°F)
Charge:-15 to 40°C(5 to 104°F)
Storage:-15 to 40°C(5 to 104°F)

RECHARGEABLE
Battery quantity: 1pc (4pcs/pack)
Charging Time: 10-12hr
Recharging Voltage: 14.8V

BATTERIES
Amp Hour Rating: 12Ah

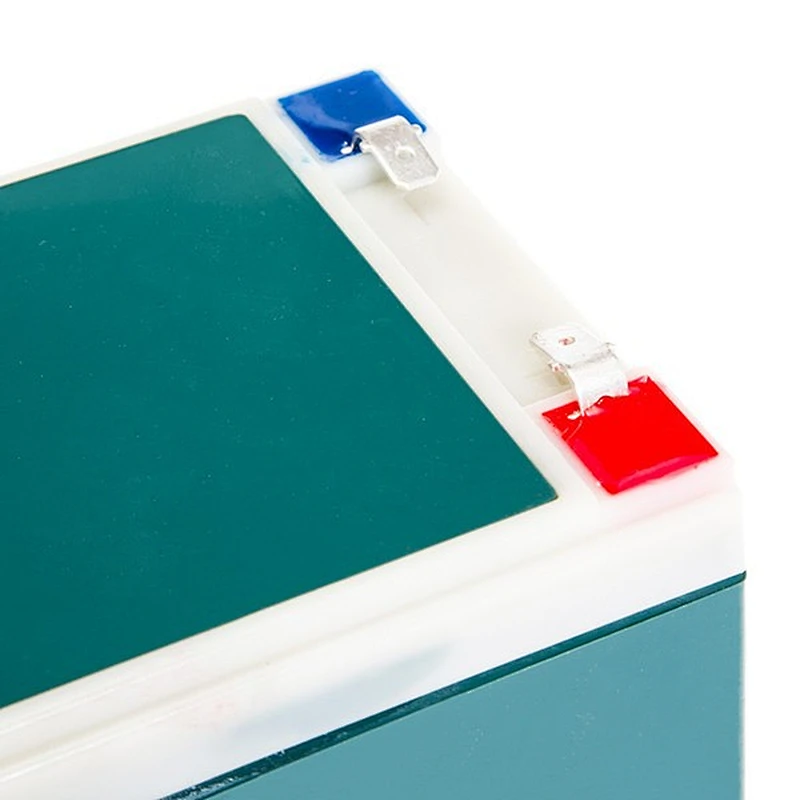

Connection Type: Spring Terminal(Pins)
2 Hour Capacity: 12Ah
3 Hour Capacity: 13Ah
5 Hour Capacity: 14.5Ah
10 Hour Capacity 16Ah
20 Hour Capacity 18Ah

Battery Usage Rechargeable
Battery Chemical Composition: Sealed Lead Acid (SLA)

DC VOLTAGE RATING
DC Voltage: 12V

PRODUCT DIMENSIONS (Tolorance.2mm)
Item Length 150mm
Item Height 100mm
Item Depth 100mm

PACKAGED DIMENSIONS
Packaged Volume 0.010CBM/CTN
Packaged Weight 17.7kgs(N.W.: 17.2KGS)
Packaged Length 31.2cm
Packaged Width 21cm
Packaged Height 14cm
20"Container:3800pcs

Warranty: 12-15 Months

Best Rechargeable Sealed Lead Acid Battery 12v 12a for Electric scooter, e-bicycle, electric bicycle, battery operated vehicle

What's your batteries detail information?

Battery Information:

Size:L151*W100*H99MM
Capacity:12V 12AH
Lead Acid Battery
Discharge Time:2 (HRS)
Terminal:Pins

Package:

4PCS/CTN CTN Size:31.2*21*14CM
GW/NW:17.4/17.2KGS
20'':3800PCS

Cycle Life:

850 Times at 80%DOD

Do you have pictures showing details for your batteries?

Product Description

What's your batteries info.?

Model	6-DZM-12	Nominal Voltage	12V	Rated Capacity	12AH
Type	Lead Acid Battery	Dimension	15110099MM	Weight	4.300 KGS
Certificate	ISO9001, ISO14001, CE, UL	MOQ	20 pcs/item	Package Detail	Paper Carton with Wooden Pallet
Payment Terms	T/T or L/C	Main Market	India,Turkey,etc.	Delivery Time	1 Days

Packaging & Shipping

Packaging & Delivery:

Packaging Details:Paper Box or White Box and Pallet

Delivery Details:All goods are in warehouse and can be deliveried within 1-3 Days

Product Specification

Lead Acid	Nominal	Discharge	Rated	External Dimensions/mm
Battery	Voltage	Time	Capacity	Length	Width	Height	Total Height	Weight
Model	(V)	(HRS)	(AH)				(MM+-2)	(KGS)
6-DZM-10	12	2	10	151	100	95	95	4.2
6-DZM-12	12	2	12	151	100	97	97	4.3
6-DZM-17	12	2	17	180	76	152	152	6.3
6-DZM-20	12	2	20	180	76	170	170	7.0
6-DZM-24	12	2	24	185	105	130	130	7.3
6-DZM-28	12	2	28	175	166	125	125	9.8
6-DZM-32	12	2	32	175	166	125	125-	10.5
6-DZM-48	12	2	48	196	164	175	175	16.0
6-FM-35	12	10	35	267	77	170	170	10.2
6-FM-42	12	10	42	220	120	175	175	12.5
6-FM-50	12	10	50	224	120	175	177	13.35
8-DZM-14	16	2	14	201	112	102	102	7.0
8-DZM-20	16	2	20	250	100	130	130	9.6
8-DZM-28	16	2	28	250	166	125	125	12.7
